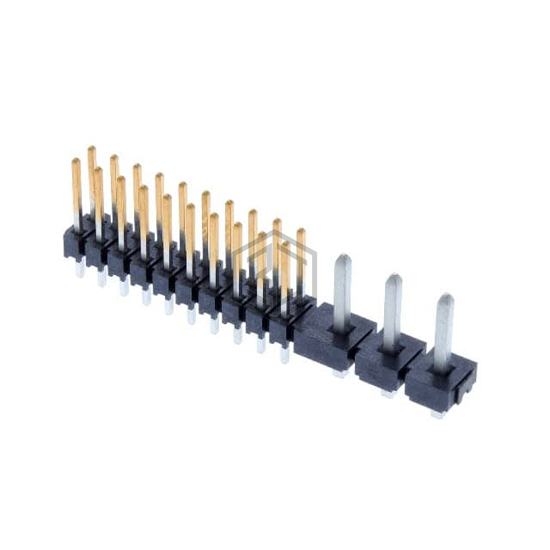

CONN HDR .1" SIGNAL/PWR COMBO
HPMC-110-03-L-D-03 is a Rectangular Connectors - Headers, Male Pins manufactured by Samtec Inc.. CONN HDR .1" SIGNAL/PWR COMBO. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 125°C, voltage rating 850VAC, 1200VDC, contact material Beryllium Copper, Phosphor Bronze.
In Stock: 682
| Attribute | Value |
|---|---|
| Product Status | Active |
| Connector Type | Header |
| Contact Type | Male Pin |
| Pitch - Mating | - |
| Number of Positions | 23 (20 + 3 Power) |
| Number of Rows | - |
| Row Spacing - Mating | - |
| Number of Positions Loaded | All |
| Style | Board to Board |
| Shrouding | Unshrouded |
| Mounting Type | Through Hole |
| Termination | Solder |
| Fastening Type | Push-Pull |
| Contact Length - Mating | 0.320" (8.13mm) |
| Contact Length - Post | 0.100" (2.54mm) |
| Overall Contact Length | 0.520" (13.21mm) |
| Insulation Height | - |
| Contact Shape | Square |
| Contact Finish - Mating | Gold |
| Contact Finish Thickness - Mating | 10.0µin (0.25µm) |
| Contact Finish - Post | Tin |
| Contact Material | Beryllium Copper, Phosphor Bronze |
| Insulation Material | Liquid Crystal Polymer (LCP) |
| Features | - |
| Operating Temperature | -55°C ~ 125°C |
| Ingress Protection | - |
| Material Flammability Rating | UL94 V-0 |
| Insulation Color | Black |
| Current Rating (Amps) | - |
| Voltage Rating | 850VAC, 1200VDC |
Submit your RFQ for HPMC-110-03-L-D-03 and get a quote within 24 hours.
