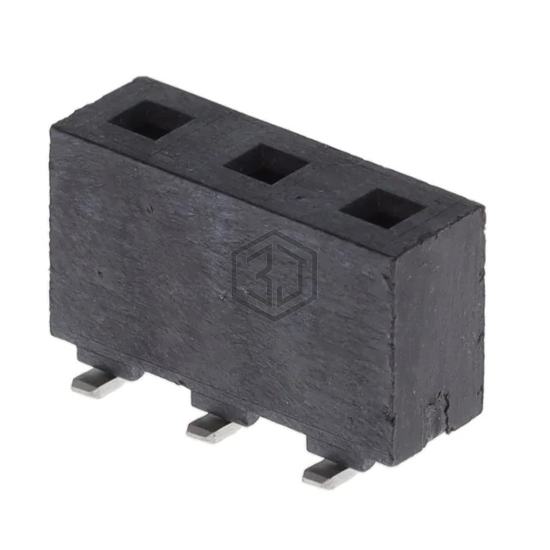

.200 HI POWER SOCKET ASSEMBLY
HPF-03-02-T-S-K-TR is a Rectangular Connectors - Headers, Receptacles, Female Sockets manufactured by Samtec Inc.. .200 HI POWER SOCKET ASSEMBLY. Key specifications: mounting type Surface Mount, termination Solder, number of positions 3, connector type Receptacle.
In Stock: 58
| Attribute | Value |
|---|---|
| Product Status | Active |
| Connector Type | Receptacle |
| Contact Type | Female Socket |
| Style | Board to Board |
| Number of Positions | 3 |
| Number of Positions Loaded | All |
| Pitch - Mating | 0.200" (5.08mm) |
| Number of Rows | 1 |
| Row Spacing - Mating | - |
| Mounting Type | Surface Mount |
| Termination | Solder |
| Fastening Type | Push-Pull |
| Contact Finish - Mating | Tin |
| Contact Finish Thickness - Mating | - |
| Insulation Color | Black |
| Insulation Height | 0.351" (8.92mm) |
| Contact Length - Post | - |
| Operating Temperature | - |
| Material Flammability Rating | - |
| Contact Finish - Post | Tin |
| Mated Stacking Heights | - |
| Ingress Protection | - |
| Features | Pick and Place |
| Current Rating (Amps) | - |
| Voltage Rating | - |
Submit your RFQ for HPF-03-02-T-S-K-TR and get a quote within 24 hours.
