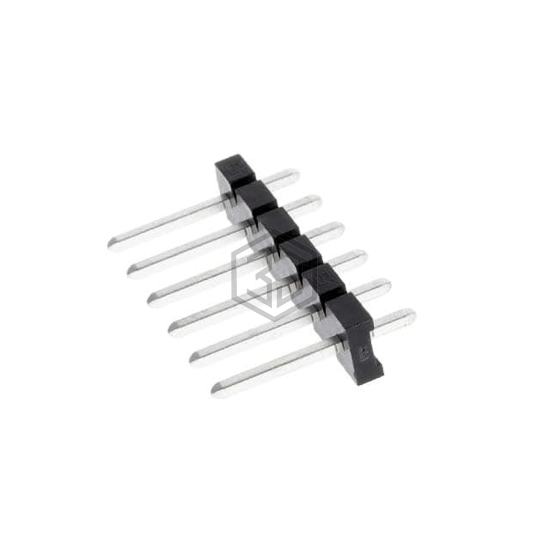

CONN HEADER VERT 6POS 5.08MM
FWS-06-01-T-S is a Rectangular Connectors - Headers, Male Pins manufactured by Samtec Inc.. CONN HEADER VERT 6POS 5.08MM. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage rating 500VAC, contact material Phosphor Bronze.
In Stock: 941
| Attribute | Value |
|---|---|
| Product Status | Active |
| Connector Type | Header |
| Contact Type | Male Pin |
| Pitch - Mating | 0.200" (5.08mm) |
| Number of Positions | 6 |
| Number of Rows | 1 |
| Row Spacing - Mating | - |
| Number of Positions Loaded | All |
| Style | Board to Board |
| Shrouding | Unshrouded |
| Mounting Type | Through Hole |
| Termination | Solder |
| Fastening Type | Push-Pull |
| Contact Length - Mating | 0.470" (11.94mm) |
| Contact Length - Post | 0.180" (4.57mm) |
| Overall Contact Length | 0.750" (19.05mm) |
| Insulation Height | 0.100" (2.54mm) |
| Contact Shape | Square |
| Contact Finish - Mating | Tin |
| Contact Finish Thickness - Mating | - |
| Contact Finish - Post | Tin |
| Contact Material | Phosphor Bronze |
| Insulation Material | Polyester, Glass Filled |
| Features | - |
| Operating Temperature | -55°C ~ 105°C |
| Ingress Protection | - |
| Material Flammability Rating | - |
| Insulation Color | Black |
| Current Rating (Amps) | 11.4A per Contact |
| Voltage Rating | 500VAC |
Submit your RFQ for FWS-06-01-T-S and get a quote within 24 hours.
