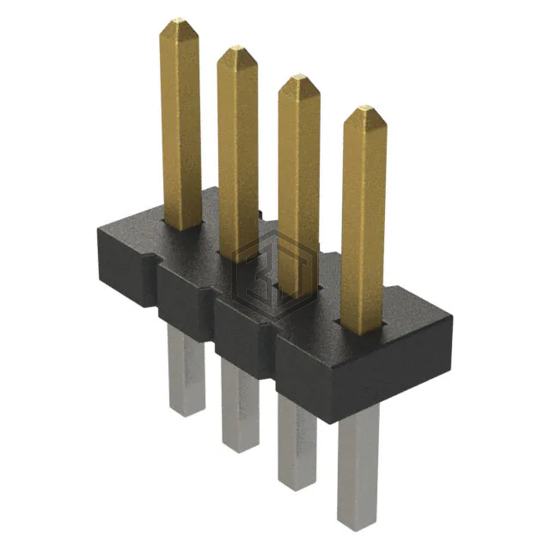

CONN HEADER VERT 4POS 1.27MM
FTS-104-01-L-S is a Rectangular Connectors - Headers, Male Pins manufactured by Samtec Inc.. CONN HEADER VERT 4POS 1.27MM. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 125°C, contact material Phosphor Bronze, current rating (amps) 3.4A per Contact.
In Stock: 924
| Attribute | Value |
|---|---|
| Product Status | Active |
| Connector Type | Header, Cuttable |
| Contact Type | Male Pin |
| Pitch - Mating | 0.050" (1.27mm) |
| Number of Positions | 4 |
| Number of Rows | 1 |
| Row Spacing - Mating | - |
| Number of Positions Loaded | All |
| Style | Board to Board or Cable |
| Shrouding | Unshrouded |
| Mounting Type | Through Hole |
| Termination | Solder |
| Fastening Type | Push-Pull |
| Contact Length - Mating | 0.120" (3.05mm) |
| Contact Length - Post | 0.090" (2.29mm) |
| Overall Contact Length | 0.244" (6.20mm) |
| Insulation Height | 0.034" (0.86mm) |
| Contact Shape | Square |
| Contact Finish - Mating | Gold |
| Contact Finish Thickness - Mating | 10.0µin (0.25µm) |
| Contact Finish - Post | Tin |
| Contact Material | Phosphor Bronze |
| Insulation Material | Liquid Crystal Polymer (LCP) |
| Features | - |
| Operating Temperature | -55°C ~ 125°C |
| Ingress Protection | - |
| Material Flammability Rating | UL94 V-0 |
| Insulation Color | Black |
| Current Rating (Amps) | 3.4A per Contact |
| Voltage Rating | - |
Submit your RFQ for FTS-104-01-L-S and get a quote within 24 hours.
