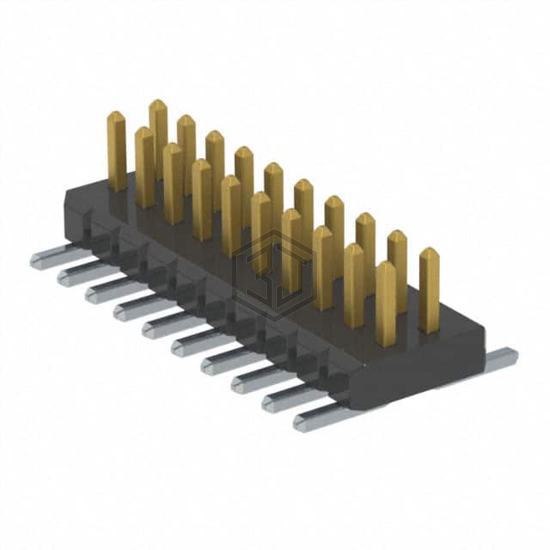

CONN HEADER SMD 20POS 1MM
FTM-110-03-L-DV is a Rectangular Connectors - Headers, Male Pins manufactured by Samtec Inc.. CONN HEADER SMD 20POS 1MM. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 125°C, contact material Phosphor Bronze, current rating (amps) 2.8A per Contact.
In Stock: 200
| Attribute | Value |
|---|---|
| Product Status | Active |
| Connector Type | Header, Cuttable |
| Contact Type | Male Pin |
| Pitch - Mating | 0.039" (1.00mm) |
| Number of Positions | 20 |
| Number of Rows | 2 |
| Row Spacing - Mating | 0.039" (1.00mm) |
| Number of Positions Loaded | All |
| Style | Board to Board |
| Shrouding | Unshrouded |
| Mounting Type | Surface Mount |
| Termination | Solder |
| Fastening Type | Push-Pull |
| Contact Length - Mating | 0.065" (1.65mm) |
| Contact Length - Post | - |
| Overall Contact Length | - |
| Insulation Height | 0.038" (0.97mm) |
| Contact Shape | Square |
| Contact Finish - Mating | Gold |
| Contact Finish Thickness - Mating | 10.0µin (0.25µm) |
| Contact Finish - Post | Tin |
| Contact Material | Phosphor Bronze |
| Insulation Material | Liquid Crystal Polymer (LCP) |
| Features | - |
| Operating Temperature | -55°C ~ 125°C |
| Ingress Protection | - |
| Material Flammability Rating | - |
| Insulation Color | Black |
| Current Rating (Amps) | 2.8A per Contact |
| Voltage Rating | - |
Submit your RFQ for FTM-110-03-L-DV and get a quote within 24 hours.
