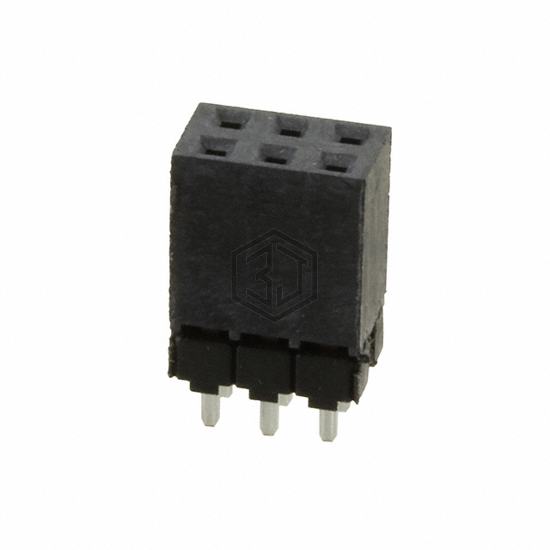

CONN SOCKET 6POS 0.1 TIN PCB
ESW-103-12-T-D is a Rectangular Connectors - Headers, Receptacles, Female Sockets manufactured by Samtec Inc.. CONN SOCKET 6POS 0.1 TIN PCB. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage rating 550VAC, current rating (amps) 5.2A per Contact.
In Stock: 73
| Attribute | Value |
|---|---|
| Product Status | Active |
| Connector Type | Elevated Socket |
| Contact Type | Forked |
| Style | Board to Board |
| Number of Positions | 6 |
| Number of Positions Loaded | All |
| Pitch - Mating | 0.100" (2.54mm) |
| Number of Rows | 2 |
| Row Spacing - Mating | 0.100" (2.54mm) |
| Mounting Type | Through Hole |
| Termination | Solder |
| Fastening Type | Push-Pull |
| Contact Finish - Mating | Tin |
| Contact Finish Thickness - Mating | - |
| Insulation Color | Black |
| Insulation Height | 0.435" (11.05mm) |
| Contact Length - Post | 0.090" (2.29mm) |
| Operating Temperature | -55°C ~ 105°C |
| Material Flammability Rating | UL94 V-0 |
| Contact Finish - Post | Tin |
| Mated Stacking Heights | - |
| Ingress Protection | - |
| Features | - |
| Current Rating (Amps) | 5.2A per Contact |
| Voltage Rating | 550VAC |
Submit your RFQ for ESW-103-12-T-D and get a quote within 24 hours.
