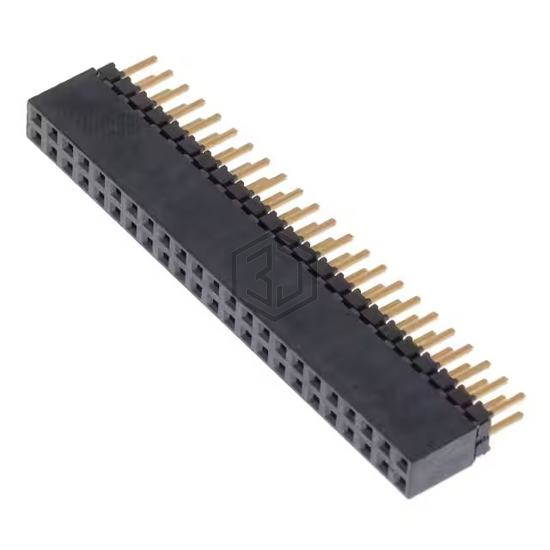

CONN SOCKET 46POS 0.079 GOLD PCB
ESQT-123-03-G-D-313 is a Rectangular Connectors - Headers, Receptacles, Female Sockets manufactured by Samtec Inc.. CONN SOCKET 46POS 0.079 GOLD PCB. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 125°C, current rating (amps) 4.5A per Contact, termination Solder.
In Stock: 100
| Attribute | Value |
|---|---|
| Product Status | Active |
| Connector Type | Elevated Socket |
| Contact Type | Forked |
| Style | Board to Board or Cable |
| Number of Positions | 46 |
| Number of Positions Loaded | All |
| Pitch - Mating | 0.079" (2.00mm) |
| Number of Rows | 2 |
| Row Spacing - Mating | 0.079" (2.00mm) |
| Mounting Type | Through Hole |
| Termination | Solder |
| Fastening Type | Push-Pull |
| Contact Finish - Mating | Gold |
| Contact Finish Thickness - Mating | 20.0µin (0.51µm) |
| Insulation Color | Black |
| Insulation Height | 0.313" (7.95mm) |
| Contact Length - Post | 0.145" (3.68mm) |
| Operating Temperature | -55°C ~ 125°C |
| Material Flammability Rating | UL94 V-0 |
| Contact Finish - Post | Gold |
| Mated Stacking Heights | - |
| Ingress Protection | - |
| Features | - |
| Current Rating (Amps) | 4.5A per Contact |
| Voltage Rating | - |
