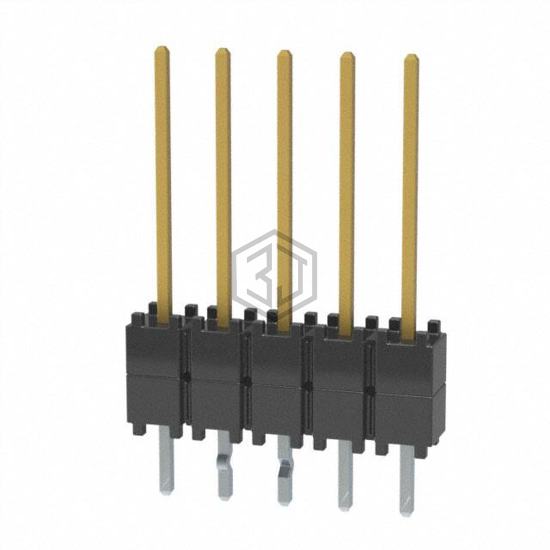

CONN HDR 5POS 0.1 STACK T/H GOLD
DW-05-09-F-S-200-LL is a Rectangular Connectors - Board Spacers, Stackers (Board to Board) manufactured by Samtec Inc.. CONN HDR 5POS 0.1 STACK T/H GOLD. Key specifications: mounting type Through Hole, color Black, termination Solder, number of positions 5.
In Stock: 1,425
| Attribute | Value |
|---|---|
| Product Status | Active |
| Number of Positions | 5 |
| Pitch | 0.100" (2.54mm) |
| Number of Rows | 1 |
| Row Spacing | - |
| Length - Overall Pin | 0.730" (18.542mm) |
| Length - Post (Mating) | 0.420" (10.668mm) |
| Length - Stack Height | 0.200" (5.080mm) |
| Length - Tail | 0.110" (2.794mm) |
| Mounting Type | Through Hole |
| Termination | Solder |
| Contact Finish - Post (Mating) | Gold |
| Contact Finish Thickness - Post (Mating) | 3.00µin (0.076µm) |
| Color | Black |
Submit your RFQ for DW-05-09-F-S-200-LL and get a quote within 24 hours.
