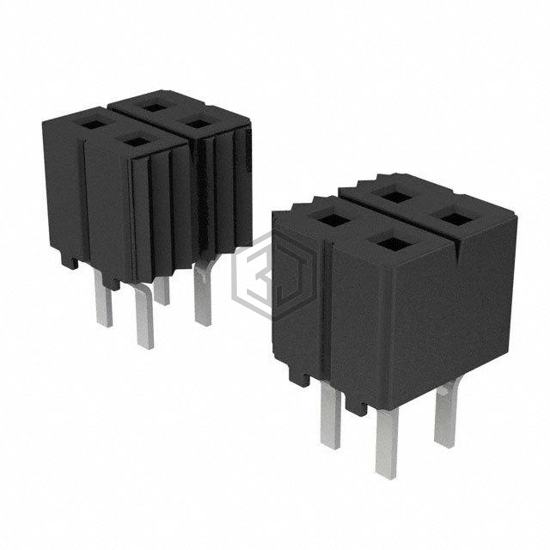

CONN RCPT 24POS 0.1 GOLD PCB
CES-112-01-L-D is a Rectangular Connectors - Headers, Receptacles, Female Sockets manufactured by Samtec Inc.. CONN RCPT 24POS 0.1 GOLD PCB. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 125°C, termination Solder, number of positions 24.
In Stock: 81
| Attribute | Value |
|---|---|
| Product Status | Active |
| Connector Type | Receptacle |
| Contact Type | Female Socket |
| Style | Board to Board |
| Number of Positions | 24 |
| Number of Positions Loaded | All |
| Pitch - Mating | 0.100" (2.54mm) |
| Number of Rows | 2 |
| Row Spacing - Mating | 0.100" (2.54mm) |
| Mounting Type | Through Hole |
| Termination | Solder |
| Fastening Type | Push-Pull |
| Contact Finish - Mating | Gold |
| Contact Finish Thickness - Mating | 10.0µin (0.25µm) |
| Insulation Color | Black |
| Insulation Height | 0.200" (5.08mm) |
| Contact Length - Post | 0.128" (3.25mm) |
| Operating Temperature | -55°C ~ 125°C |
| Material Flammability Rating | UL94 V-0 |
| Contact Finish - Post | Tin |
| Mated Stacking Heights | - |
| Ingress Protection | - |
| Features | - |
| Current Rating (Amps) | - |
| Voltage Rating | - |
Submit your RFQ for CES-112-01-L-D and get a quote within 24 hours.
