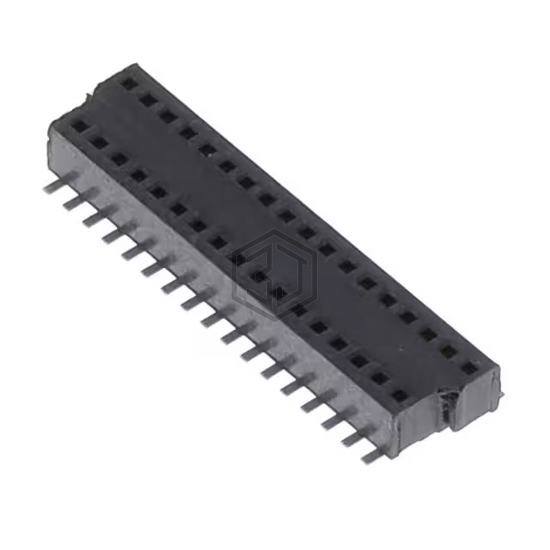

CONN SOCKET 35POS 0.039 GOLD SMD
BKS-135-01-L-V is a Rectangular Connectors - Headers, Receptacles, Female Sockets manufactured by Samtec Inc.. CONN SOCKET 35POS 0.039 GOLD SMD. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 125°C, current rating (amps) 2.8A per Contact, termination Solder.
In Stock: 124
| Attribute | Value |
|---|---|
| Product Status | Active |
| Connector Type | Socket |
| Contact Type | Female Socket |
| Style | Board to Board |
| Number of Positions | 35 |
| Number of Positions Loaded | All |
| Pitch - Mating | 0.039" (1.00mm) |
| Number of Rows | 2 |
| Row Spacing - Mating | 0.100" (2.54mm) |
| Mounting Type | Surface Mount |
| Termination | Solder |
| Fastening Type | Push-Pull |
| Contact Finish - Mating | Gold |
| Contact Finish Thickness - Mating | 10.0µin (0.25µm) |
| Insulation Color | Black |
| Insulation Height | 0.084" (2.14mm) |
| Contact Length - Post | - |
| Operating Temperature | -55°C ~ 125°C |
| Material Flammability Rating | UL94 V-0 |
| Contact Finish - Post | Tin |
| Mated Stacking Heights | 4.14mm, 4.5mm, 5mm, 6mm, 7mm |
| Ingress Protection | - |
| Features | - |
| Current Rating (Amps) | 2.8A per Contact |
| Voltage Rating | - |
Submit your RFQ for BKS-135-01-L-V and get a quote within 24 hours.
