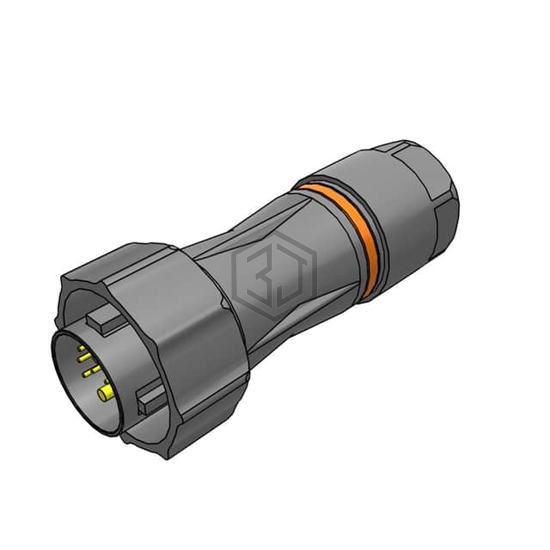

CONN PLUG MALE 10P GOLD SLDR CUP
ACPK-16-06-G-T-P-1 is a Circular Connectors manufactured by Samtec Inc.. CONN PLUG MALE 10P GOLD SLDR CUP. Key specifications: mounting type Free Hanging (In-Line), operating temperature -10°C ~ 105°C, color Black, Orange, current rating (amps) 1A per Contact, 11.6A per Contact.
In Stock: 22
| Attribute | Value |
|---|---|
| Product Status | Active |
| Connector Type | Plug, Male Pins |
| Number of Positions | 10 (8 + 2 Power) |
| Shell Size - Insert | 16 |
| Shell Size, MIL | - |
| Mounting Type | Free Hanging (In-Line) |
| Mounting Feature | - |
| Termination | Solder Cup |
| Fastening Type | Bayonet Lock |
| Orientation | 1 |
| Primary Material | Plastic |
| Shell Material | Polyamide (PA), Nylon |
| Shell Finish | - |
| Contact Finish - Mating | Gold |
| Color | Black, Orange |
| Ingress Protection | IP68 - Dust Tight, Waterproof |
| Material Flammability Rating | - |
| Features | Backshell, Coupling Nut |
| Shielding | Unshielded |
| Current Rating (Amps) | 1A per Contact, 11.6A per Contact |
| Voltage Rating | - |
| Cable Opening | 0.200" ~ 0.341" (5.08mm ~ 8.67mm) |
| Operating Temperature | -10°C ~ 105°C |
Submit your RFQ for ACPK-16-06-G-T-P-1 and get a quote within 24 hours.
