RES 43 OHM 5% 2/3W 2010

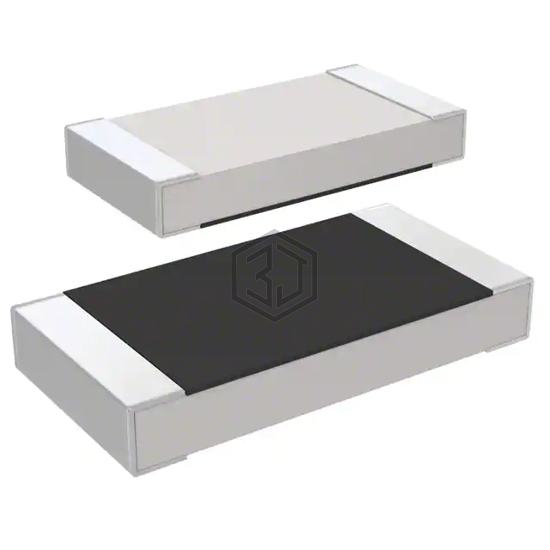

RC5025J430CS is a Chip Resistor - Surface Mount manufactured by Samsung Electro-Mechanics. RES 43 OHM 5% 2/3W 2010. Key specifications: operating temperature -55°C ~ 155°C, package / case 2010 (5025 Metric), size / dimension 0.197" L x 0.098" W (5.00mm x 2.50mm), power (watts) 0.667W, 2/3W.
In Stock: 1,875
| Attribute | Value |
|---|---|
| Product Status | Active |
| Resistance | 43 Ohms |
| Tolerance | ±5% |
| Power (Watts) | 0.667W, 2/3W |
| Composition | Thick Film |
| Features | Moisture Resistant |
| Temperature Coefficient | ±100ppm/°C |
| Operating Temperature | -55°C ~ 155°C |
| Package / Case | 2010 (5025 Metric) |
| Supplier Device Package | 2010 |
| Ratings | - |
| Size / Dimension | 0.197" L x 0.098" W (5.00mm x 2.50mm) |
| Height - Seated (Max) | 0.026" (0.66mm) |
| Number of Terminations | 2 |
| Failure Rate | - |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| ERJ-U1TJ430U | Panasonic Electronic Components | RES 43 OHM 5% 1W 2512 SMD | 80% | View |
| RGC2512DTC43R0 | Stackpole Electronics Inc | RES, 2512, 43 OHM, 0.5%, 50 PPM, | 80% | View |
| RCP2512B43R0JEA | Vishay Dale | RES SMD 43 OHM 5% 3.5W 2512 | 67% | View |
| SG73S2BTTD43R0D | KOA Speer Electronics, Inc. | RES 43 OHM 0.5% 1/3W 1206 | 64% | View |
| RS73F2BTTD43R0B | KOA Speer Electronics, Inc. | RES 43 OHM 0.1% 1/3W 1206 | 64% | View |
| CR10430J | Meritek | RES SMD 43 OHM 5% 1/8W 0805 | 64% | View |
Submit your RFQ for RC5025J430CS and get a quote within 24 hours.
