FIXED IND 220NH 200MA 1.5OHM SMD

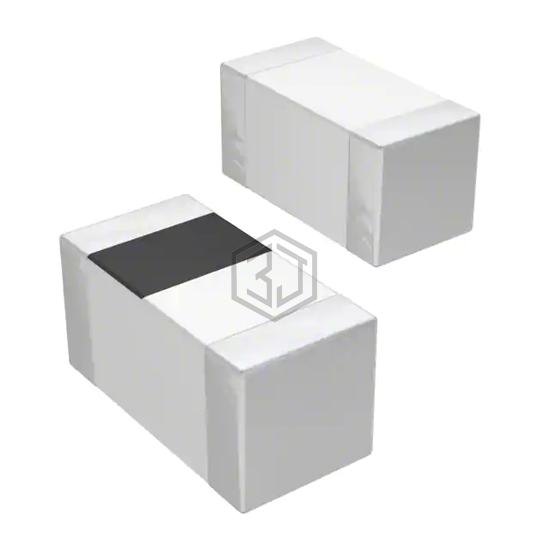

CIH10TR22JNC is a Fixed Inductors manufactured by Samsung Electro-Mechanics. FIXED IND 220NH 200MA 1.5OHM SMD. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 125°C, package / case 0603 (1608 Metric), current rating (amps) 200 mA.
In Stock: 3
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Type | Multilayer |
| Material - Core | - |
| Inductance | 220 nH |
| Tolerance | ±5% |
| Current Rating (Amps) | 200 mA |
| Current - Saturation (Isat) | - |
| Shielding | Unshielded |
| DC Resistance (DCR) | 1.5Ohm Max |
| Q @ Freq | 8 @ 100MHz |
| Frequency - Self Resonant | 400MHz |
| Ratings | - |
| Operating Temperature | -55°C ~ 125°C |
| Inductance Frequency - Test | 100 MHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | 0603 (1608 Metric) |
| Supplier Device Package | - |
| Size / Dimension | 0.063" L x 0.031" W (1.60mm x 0.80mm) |
| Height - Seated (Max) | - |
Submit your RFQ for CIH10TR22JNC and get a quote within 24 hours.
