FIXED IND 8.2NH 700MA 240MOHM SM

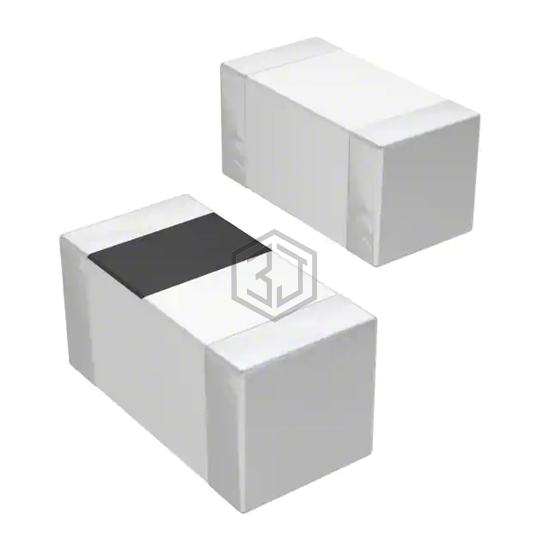

CIH10T8N2JNC is a Fixed Inductors manufactured by Samsung Electro-Mechanics. FIXED IND 8.2NH 700MA 240MOHM SM. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 125°C, package / case 0603 (1608 Metric), current rating (amps) 700 mA.
In Stock: 5,316
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Type | Multilayer |
| Material - Core | - |
| Inductance | 8.2 nH |
| Tolerance | ±5% |
| Current Rating (Amps) | 700 mA |
| Current - Saturation (Isat) | - |
| Shielding | Unshielded |
| DC Resistance (DCR) | 240mOhm Max |
| Q @ Freq | 10 @ 100MHz |
| Frequency - Self Resonant | 3.5GHz |
| Ratings | - |
| Operating Temperature | -55°C ~ 125°C |
| Inductance Frequency - Test | 100 MHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | 0603 (1608 Metric) |
| Supplier Device Package | - |
| Size / Dimension | 0.063" L x 0.031" W (1.60mm x 0.80mm) |
| Height - Seated (Max) | - |
Submit your RFQ for CIH10T8N2JNC and get a quote within 24 hours.
