FIXED IND 56NH 180MA 1.4 OHM SMD

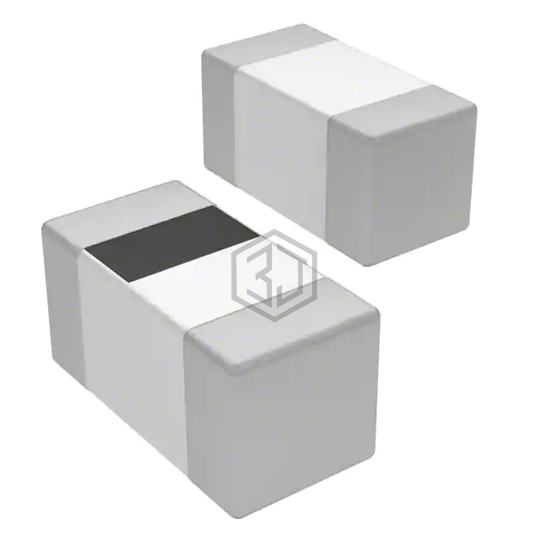

CIH05T56NJNC is a Fixed Inductors manufactured by Samsung Electro-Mechanics. FIXED IND 56NH 180MA 1.4 OHM SMD. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 125°C, package / case 0402 (1005 Metric), current rating (amps) 180 mA.
In Stock: 564
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Type | Multilayer |
| Material - Core | - |
| Inductance | 56 nH |
| Tolerance | ±5% |
| Current Rating (Amps) | 180 mA |
| Current - Saturation (Isat) | - |
| Shielding | Unshielded |
| DC Resistance (DCR) | 1.4Ohm Max |
| Q @ Freq | 8 @ 100MHz |
| Frequency - Self Resonant | 750MHz |
| Ratings | - |
| Operating Temperature | -55°C ~ 125°C |
| Inductance Frequency - Test | 100 MHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | 0402 (1005 Metric) |
| Supplier Device Package | - |
| Size / Dimension | 0.039" L x 0.020" W (1.00mm x 0.50mm) |
| Height - Seated (Max) | - |
Submit your RFQ for CIH05T56NJNC and get a quote within 24 hours.
