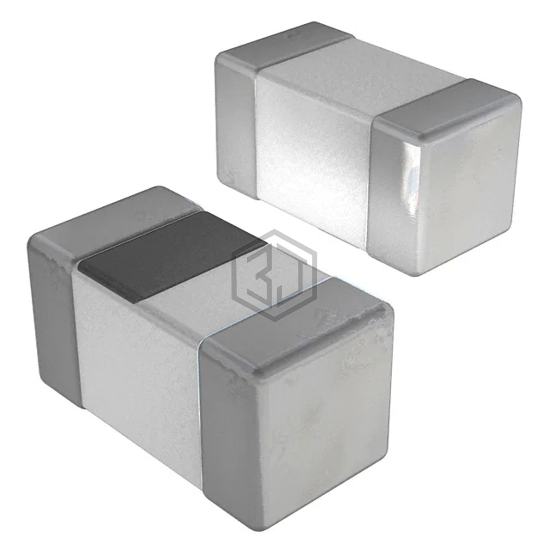

FIXED IND 1.5NH 440MA 110MOHM SM
CIH03Q1N5CNC is a Fixed Inductors manufactured by Samsung Electro-Mechanics. FIXED IND 1.5NH 440MA 110MOHM SM. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 125°C, package / case 0201 (0603 Metric), current rating (amps) 440 mA.
In Stock: 2,891
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Type | Multilayer |
| Material - Core | - |
| Inductance | 1.5 nH |
| Tolerance | ±0.2nH |
| Current Rating (Amps) | 440 mA |
| Current - Saturation (Isat) | - |
| Shielding | Unshielded |
| DC Resistance (DCR) | 110mOhm Max |
| Q @ Freq | 13 @ 500MHz |
| Frequency - Self Resonant | 10GHz |
| Ratings | - |
| Operating Temperature | -55°C ~ 125°C |
| Inductance Frequency - Test | 500 MHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | 0201 (0603 Metric) |
| Supplier Device Package | - |
| Size / Dimension | 0.024" L x 0.012" W (0.60mm x 0.30mm) |
| Height - Seated (Max) | - |
Submit your RFQ for CIH03Q1N5CNC and get a quote within 24 hours.
