FIXED IND 2.2UH 1.8A 139MOHM SMD

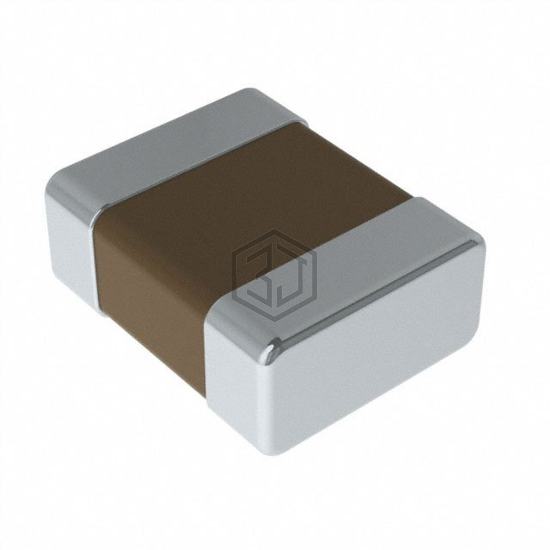

CIGT201610LH2R2MNE is a Fixed Inductors manufactured by Samsung Electro-Mechanics. FIXED IND 2.2UH 1.8A 139MOHM SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, package / case 0806 (2016 Metric), current rating (amps) 1.8 A.
In Stock: 165,862
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Thin Film |
| Material - Core | Metal Composite |
| Inductance | 2.2 µH |
| Tolerance | ±20% |
| Current Rating (Amps) | 1.8 A |
| Current - Saturation (Isat) | 2.3A |
| Shielding | Unshielded |
| DC Resistance (DCR) | 139mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | - |
| Ratings | - |
| Operating Temperature | -40°C ~ 125°C |
| Inductance Frequency - Test | 1 MHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | 0806 (2016 Metric) |
| Supplier Device Package | 0806 (2016 Metric) |
| Size / Dimension | 0.079" L x 0.063" W (2.00mm x 1.60mm) |
| Height - Seated (Max) | 0.039" (1.00mm) |
