CAP ALUM 3300UF 20% 80V SNAP

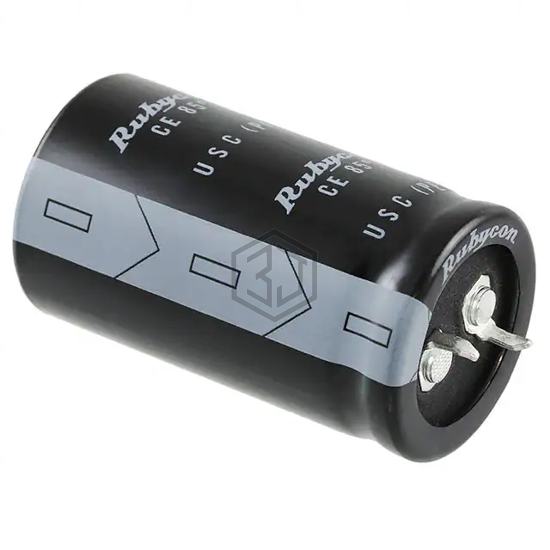

80USC3300MEFCSN25X35 is a Aluminum Electrolytic Capacitors manufactured by Rubycon. CAP ALUM 3300UF 20% 80V SNAP. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 85°C, voltage - rated 80 V, package / case Radial, Can - Snap-In.
In Stock: 7,166
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 3300 µF |
| Tolerance | ±20% |
| Voltage - Rated | 80 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 3000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 3.25 A @ 120 Hz |
| Ripple Current @ High Frequency | 3.7375 A @ 10 kHz |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 0.984" Dia (25.00mm) |
| Height - Seated (Max) | 1.457" (37.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| EKMH101VSN332MA40U | United Chemi-Con | CAP ALUM 3300UF 20% 100V SNAP | 92% | View |
| LKG1K332MESCCK | Nichicon | CAP ALUM 3300UF 20% 80V SNAP | 86% | View |
| LKG2A332MESCBK | Nichicon | CAP ALUM 3300UF 20% 100V SNAP | 77% | View |
| SEK332M050ST | Cornell Dubilier Electronics (CDE) | CAP ALUM 3300UF 20% 50V RADIAL | 77% | View |
| 16ZL3300MEFC12.5X35 | Rubycon | CAP ALUM 3300UF 20% 16V RADIAL | 69% | View |
| 10ZLJ3300MG412.5X25 | Rubycon | CAP ALUM 3300UF 20% 10V RADIAL | 66% | View |
