CAP ALUM 1800UF 20% 80V SNAP

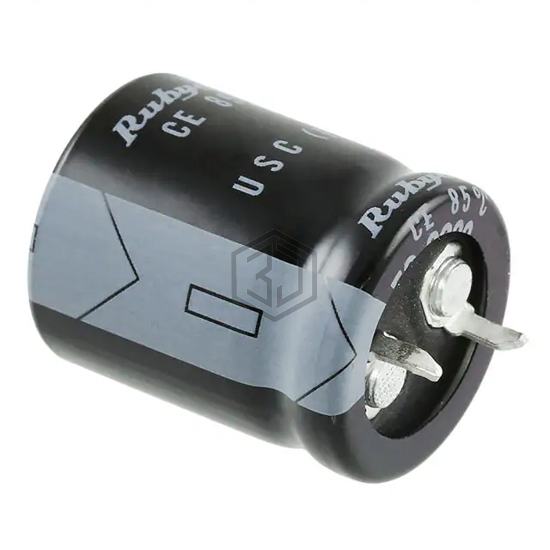

80USC1800MEFCSN22X30 is a Aluminum Electrolytic Capacitors manufactured by Rubycon. CAP ALUM 1800UF 20% 80V SNAP. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 85°C, voltage - rated 80 V, package / case Radial, Can - Snap-In.
In Stock: 8,054
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 1800 µF |
| Tolerance | ±20% |
| Voltage - Rated | 80 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 3000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 2.3 A @ 120 Hz |
| Ripple Current @ High Frequency | 2.645 A @ 10 kHz |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 0.866" Dia (22.00mm) |
| Height - Seated (Max) | 1.260" (32.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| SLP182M100C7P3 | Cornell Dubilier Electronics (CDE) | CAP ALUM 1800UF 20% 100V SNAP | 91% | View |
| LGY1J182MELA25 | Nichicon | CAP ALUM 1800UF 20% 63V SNAP | 75% | View |
| LKG2A182MESCCK | Nichicon | CAP ALUM 1800UF 20% 100V SNAP | 72% | View |
| EGQB250ELL182ML20H | United Chemi-Con | CAP ALUM 1800UF 20% 25V RADIAL | 70% | View |
| EKYC350ELL182MK25S | United Chemi-Con | CAP ALUM 1800UF 20% 35V RADIAL | 70% | View |
| 35ZLJ1800M12.5X35 | Rubycon | CAP ALUM 1800UF 20% 35V RADIAL | 67% | View |
Submit your RFQ for 80USC1800MEFCSN22X30 and get a quote within 24 hours.
