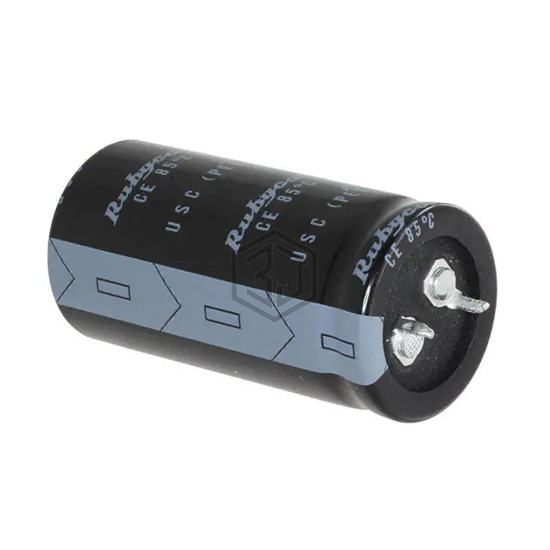

CAP ALUM 10000UF 20% 80V SNAP
80USC10000MEFCSN35X50 is a Aluminum Electrolytic Capacitors manufactured by Rubycon. CAP ALUM 10000UF 20% 80V SNAP. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 85°C, voltage - rated 80 V, package / case Radial, Can - Snap-In.
In Stock: 2,260
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 10000 µF |
| Tolerance | ±20% |
| Voltage - Rated | 80 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 3000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 7.03 A @ 120 Hz |
| Ripple Current @ High Frequency | 8.0845 A @ 10 kHz |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 1.378" Dia (35.00mm) |
| Height - Seated (Max) | 2.047" (52.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 63VXG10000M35X50 | Rubycon | CAP ALUM 10000UF 20% 63V SNAP | 85% | View |
| LKG1J103MKN | Nichicon | CAP ALUM 10000UF 20% 63V SOLDER | 78% | View |
| MALIEYN07CA510H02K | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 10000UF 20% 50V SNAP | 75% | View |
| EKMH630VRD103MA50U | United Chemi-Con | CAP ALUM 10000UF 20% 63V SNAP | 71% | View |
| MAL205157103E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 10000UF 20% 40V RADIAL | 62% | View |
| EKMH500VSN103MA40U | United Chemi-Con | CAP ALUM 10000UF 20% 50V SNAP | 58% | View |
