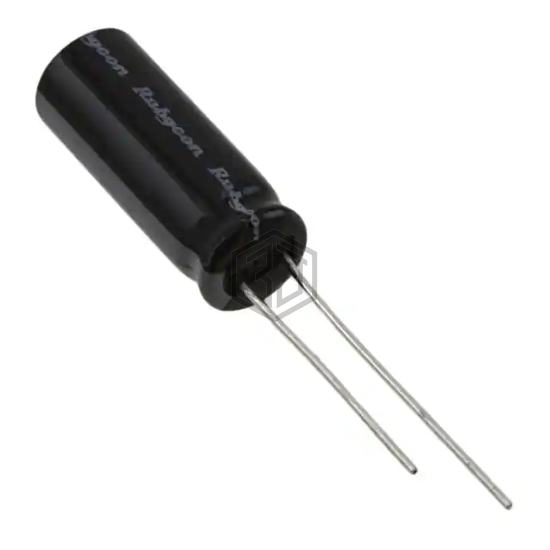

CAP ALUM 100UF 20% 63V RADIAL
63ZLJ100M8X16 is a Aluminum Electrolytic Capacitors manufactured by Rubycon. CAP ALUM 100UF 20% 63V RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 63 V, package / case Radial, Can.
In Stock: 7,101
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 100 µF |
| Tolerance | ±20% |
| Voltage - Rated | 63 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 9000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 495 mA @ 120 Hz |
| Ripple Current @ High Frequency | 990 mA @ 100 kHz |
| Impedance | 130 mOhms |
| Lead Spacing | 0.138" (3.50mm) |
| Size / Dimension | 0.315" Dia (8.00mm) |
| Height - Seated (Max) | 0.689" (17.50mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 63TXW100MEFC6.3X30 | Rubycon | CAP ALUM 100UF 20% 63V RADIAL | 98% | View |
| 672D107H050DT5C | Vishay Sprague | CAP ALUM 100UF 50V RADIAL | 85% | View |
| MAL215038101E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 100UF 20% 63V RADIAL | 72% | View |
| EKHE451ELL101ML35S | United Chemi-Con | RADIAL ALUMINUM ELECTROLYTIC CAP | 67% | View |
| UBW1H101MPD | Nichicon | CAP ALUM 100UF 20% 50V RADIAL | 66% | View |
| EKXG251ELL101ML25S | United Chemi-Con | CAP ALUM 100UF 20% 250V RADIAL | 61% | View |
