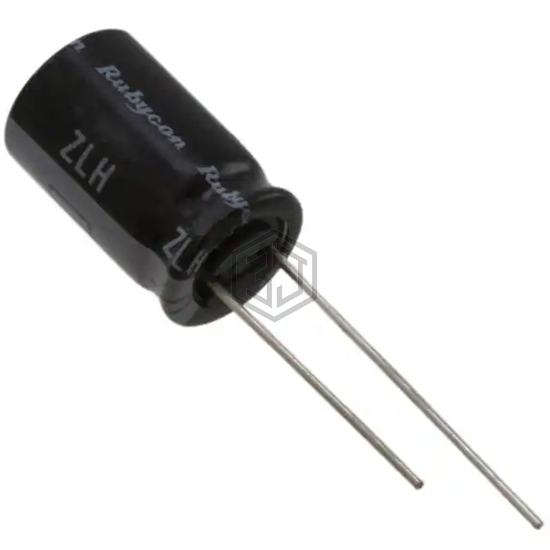

CAP ALUM 180UF 20% 63V RADIAL
63ZLH180MEFC10X16 is a Aluminum Electrolytic Capacitors manufactured by Rubycon. CAP ALUM 180UF 20% 63V RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 63 V, package / case Radial, Can.
In Stock: 6,448
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 180 µF |
| Tolerance | ±20% |
| Voltage - Rated | 63 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 10000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 499 mA @ 120 Hz |
| Ripple Current @ High Frequency | 998 mA @ 100 kHz |
| Impedance | 110 mOhms |
| Lead Spacing | 0.197" (5.00mm) |
| Size / Dimension | 0.394" Dia (10.00mm) |
| Height - Seated (Max) | 0.689" (17.50mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 100YXH180MEFC12.5X25 | Rubycon | CAP ALUM 180UF 20% 100V RADIAL | 79% | View |
| UAS2D181MHD6 | Nichicon | CAP ALUM 180UF 20% 200V RADIAL | 74% | View |
| 50ZL180MEFCTA8X20 | Rubycon | CAP ALUM 180UF 20% 50V RADIAL | 73% | View |
| UAQ2D181MRD3 | Nichicon | CAP ALUM 180UF 20% 200V RADIAL | 73% | View |
| 672D187H040DM2C | Vishay Sprague | CAP ALUM 180UF 40V RADIAL | 71% | View |
| EEU-FC1E181BJ | Panasonic Electronic Components | CAP ALUM 180UF 20% 25V RADIAL | 67% | View |
Submit your RFQ for 63ZLH180MEFC10X16 and get a quote within 24 hours.
