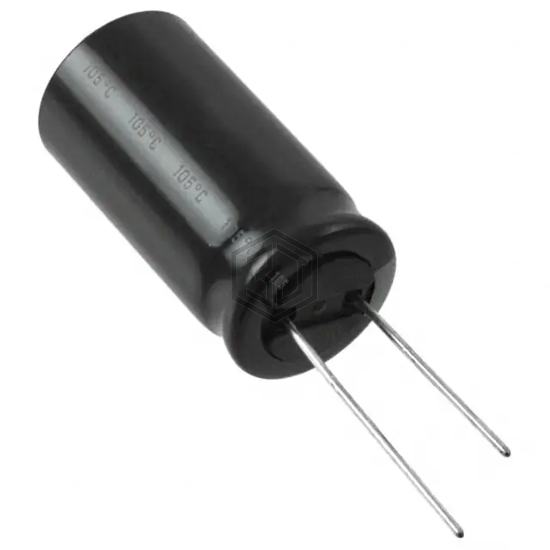

CAP ALUM 1500UF 20% 63V RADIAL
63ZLH1500MEFCGC16X35.5 is a Aluminum Electrolytic Capacitors manufactured by Rubycon. CAP ALUM 1500UF 20% 63V RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 63 V, package / case Radial, Can.
In Stock: 3,772
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 1500 µF |
| Tolerance | ±20% |
| Voltage - Rated | 63 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 10000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 1.824 A @ 120 Hz |
| Ripple Current @ High Frequency | - |
| Impedance | 21 mOhms |
| Lead Spacing | 0.295" (7.50mm) |
| Size / Dimension | 0.630" Dia (16.00mm) |
| Height - Seated (Max) | 1.476" (37.50mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 381LX152M080H032 | Cornell Dubilier Electronics (CDE) | CAP ALUM 1500UF 20% 80V SNAP | 88% | View |
| UHW1H152MHD6TN | Nichicon | CAP ALUM 1500UF 20% 50V RADIAL | 88% | View |
| ESC158M063AN2AA | KEMET | CAP ALUM RAD 105C | 84% | View |
| EEU-TP1V152SB | Panasonic Electronic Components | CAP ALUM 1500UF 20% 35V RADIAL | 70% | View |
| EEU-FR1A152B | Panasonic Electronic Components | CAP ALUM 1500UF 20% 10V RADIAL | 65% | View |
| 160MXG1500MEFCSN35X30 | Rubycon | CAP ALUM 1500UF 20% 160V SNAP | 61% | View |
Submit your RFQ for 63ZLH1500MEFCGC16X35.5 and get a quote within 24 hours.
