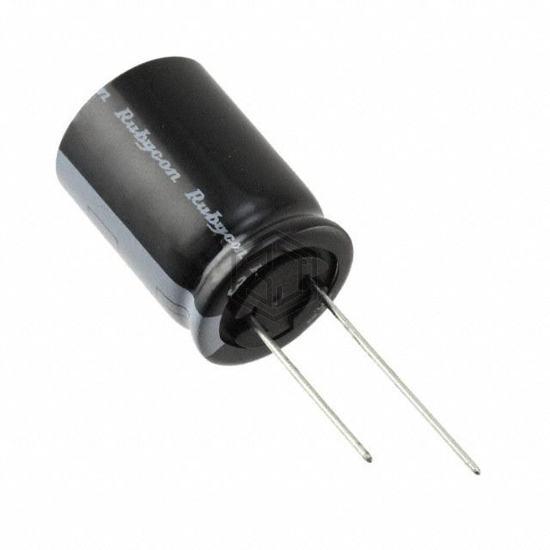

CAP ALUM 820UF 20% 63V RADIAL
63YXH820MEFCGC18X25 is a Aluminum Electrolytic Capacitors manufactured by Rubycon. CAP ALUM 820UF 20% 63V RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 63 V, package / case Radial, Can.
In Stock: 8,279
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 820 µF |
| Tolerance | ±20% |
| Voltage - Rated | 63 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 10000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 936 mA @ 120 Hz |
| Ripple Current @ High Frequency | 1.56 A @ 100 kHz |
| Impedance | 52 mOhms |
| Lead Spacing | 0.295" (7.50mm) |
| Size / Dimension | 0.709" Dia (18.00mm) |
| Height - Seated (Max) | 1.063" (27.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| LGY2A821MELZ30 | Nichicon | CAP ALUM 820UF 20% 100V SNAP | 77% | View |
| 100MXC820MEFC22X30 | Rubycon | CAP ALUM 820UF 20% 100V SNAP | 77% | View |
| UPA1C821MPD6TD | Nichicon | CAP ALUM 820UF 20% 16V RADIAL | 76% | View |
| EEU-FC1E821B | Panasonic Electronic Components | CAP ALUM 820UF 20% 25V RADIAL | 75% | View |
| EEU-FM0J821LBJ | Panasonic Electronic Components | CAP ALUM 820UF 20% 6.3V RADIAL | 74% | View |
| 381LX821M100H012 | Cornell Dubilier Electronics (CDE) | CAP ALUM 820UF 20% 100V SNAP | 68% | View |
Submit your RFQ for 63YXH820MEFCGC18X25 and get a quote within 24 hours.
