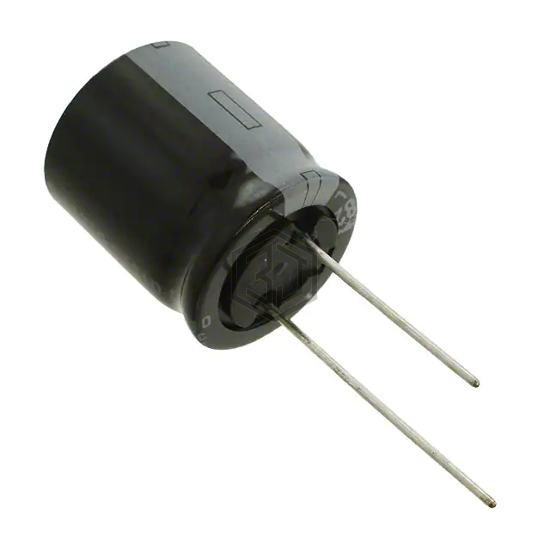

CAP ALUM 680UF 20% 63V RADIAL
63YXH680MEFC18X20 is a Aluminum Electrolytic Capacitors manufactured by Rubycon. CAP ALUM 680UF 20% 63V RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 63 V, package / case Radial, Can.
In Stock: 4,781
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 680 µF |
| Tolerance | ±20% |
| Voltage - Rated | 63 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 10000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 715 mA @ 120 Hz |
| Ripple Current @ High Frequency | 1.3 A @ 100 kHz |
| Impedance | 72 mOhms |
| Lead Spacing | 0.295" (7.50mm) |
| Size / Dimension | 0.709" Dia (18.00mm) |
| Height - Seated (Max) | 0.866" (22.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 63YXH680MEFCGC18X20 | Rubycon | CAP ALUM 680UF 20% 63V RADIAL | 100% | View |
| ELXV630EC3681ML30S | United Chemi-Con | CAP ALUM 680UF 20% 63V RADIAL | 85% | View |
| 50PX680MEFC12.5X20 | Rubycon | CAP ALUM 680UF 20% 50V RADIAL | 83% | View |
| EGPA630ELL681ML25S | United Chemi-Con | CAP ALUM 680UF 20% 63V RADIAL | 77% | View |
| EEU-FC1C681B | Panasonic Electronic Components | CAP ALUM 680UF 20% 16V RADIAL | 75% | View |
| MAL215036681E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 680UF 20% 25V RADIAL | 68% | View |
