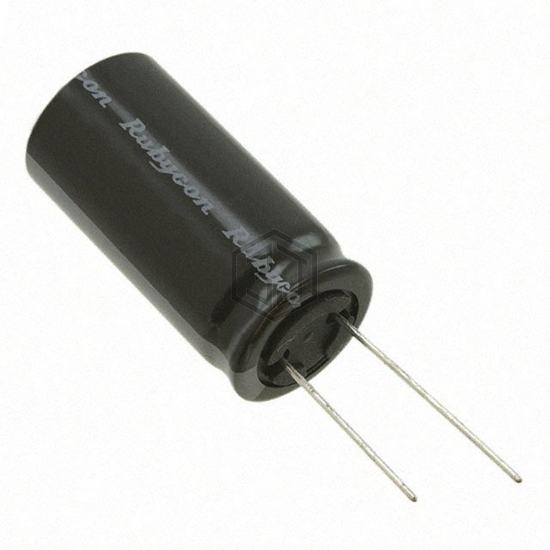

CAP ALUM 1000UF 20% 63V RADIAL
63YXG1000MEFCGC16X35.5 is a Aluminum Electrolytic Capacitors manufactured by Rubycon. CAP ALUM 1000UF 20% 63V RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 63 V, package / case Radial, Can.
In Stock: 5,798
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 1000 µF |
| Tolerance | ±20% |
| Voltage - Rated | 63 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 6000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 978 mA @ 120 Hz |
| Ripple Current @ High Frequency | 1.63 A @ 100 kHz |
| Impedance | 45 mOhms |
| Lead Spacing | 0.295" (7.50mm) |
| Size / Dimension | 0.630" Dia (16.00mm) |
| Height - Seated (Max) | 1.476" (37.50mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 108CKH050M | Cornell Dubilier / Illinois Capacitor | CAP ALUM 1000UF 20% 50V RADIAL | 89% | View |
| MAL205851102E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 1000UF 20% 50V SNAP | 74% | View |
| EEU-FC1E102B | Panasonic Electronic Components | CAP ALUM 1000UF 20% 25V RADIAL | 74% | View |
| EEU-FR1C102LJ | Panasonic Electronic Components | CAP ALUM 1000UF 20% 16V RADIAL | 72% | View |
| 10ZLS1000MEFC10X12.5 | Rubycon | CAP ALUM 1000UF 20% 10V RADIAL | 71% | View |
| 25ZT1000M12.5X25 | Rubycon | CAP ALUM 1000UF 20% 25V RADIAL | 70% | View |
Submit your RFQ for 63YXG1000MEFCGC16X35.5 and get a quote within 24 hours.
