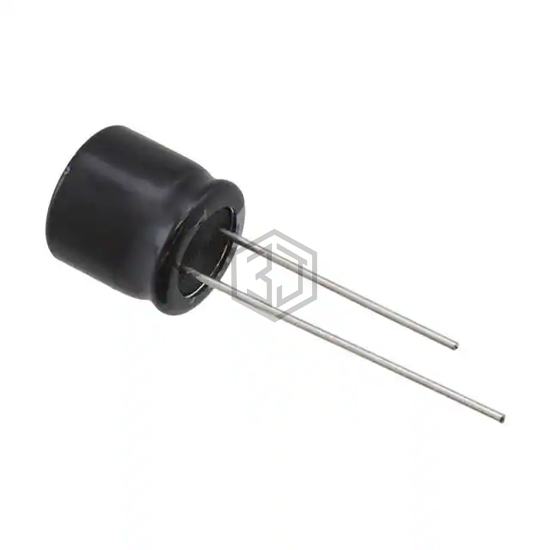

CAP ALUM 100UF 20% 63V RADIAL
63YXA100MEFCT810X12.5 is a Aluminum Electrolytic Capacitors manufactured by Rubycon. CAP ALUM 100UF 20% 63V RADIAL. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage - rated 63 V, package / case Radial, Can.
In Stock: 6,968
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 100 µF |
| Tolerance | ±20% |
| Voltage - Rated | 63 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 2000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 230 mA @ 120 Hz |
| Ripple Current @ High Frequency | 276 mA @ 10 kHz |
| Impedance | - |
| Lead Spacing | 0.197" (5.00mm) |
| Size / Dimension | 0.394" Dia (10.00mm) |
| Height - Seated (Max) | 0.551" (14.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
63YXA100MEFCT810X12.5 is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 50WXA100MEFCT78X9 | Rubycon | CAP ALUM 100UF 20% 50V RADIAL | 86% | View |
| MAL212327101 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 100UF 20% 40V AXIAL | 80% | View |
| 678D107M025CC4DE3 | Vishay Sprague | CAP ALUM 100UF 20% 25V RADIAL | 75% | View |
| 678D107M025CC3D | Vishay Sprague | CAP ALUM 100UF 20% 25V RADIAL | 75% | View |
| 860160574013 | Würth Elektronik | CAP ALUM 100UF 20% 35V RADIAL | 71% | View |
| EEU-FC0J101B | Panasonic Electronic Components | CAP ALUM 100UF 20% 6.3V RADIAL | 51% | View |
Submit your RFQ for 63YXA100MEFCT810X12.5 and get a quote within 24 hours.
