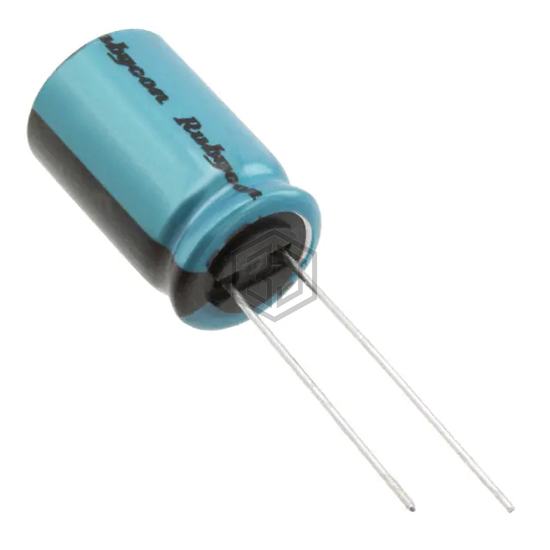

CAP ALUM 220UF 20% 63V RADIAL
63RX30220MG412.5X20 is a Aluminum Electrolytic Capacitors manufactured by Rubycon. CAP ALUM 220UF 20% 63V RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 130°C, voltage - rated 63 V, package / case Radial, Can.
In Stock: 2,402
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 220 µF |
| Tolerance | ±20% |
| Voltage - Rated | 63 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 4000 Hrs @ 130°C |
| Operating Temperature | -40°C ~ 130°C |
| Polarization | Polar |
| Ratings | AEC-Q200 |
| Applications | Automotive |
| Ripple Current @ Low Frequency | 574 mA @ 120 Hz |
| Ripple Current @ High Frequency | 820 mA @ 100 kHz |
| Impedance | 100 mOhms |
| Lead Spacing | 0.197" (5.00mm) |
| Size / Dimension | 0.492" Dia (12.50mm) |
| Height - Seated (Max) | 0.866" (22.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 50RX30220MT810X20 | Rubycon | CAP ALUM 220UF 20% 50V RADIAL | 88% | View |
| EEU-TP1V221 | Panasonic Electronic Components | CAP ALUM 220UF 20% 35V RADIAL | 73% | View |
| UBX1H221MPL | Nichicon | CAP ALUM 220UF 20% 50V RADIAL | 71% | View |
| UBW2A221MHD1TN | Nichicon | CAP ALUM 220UF 20% 100V RADIAL | 69% | View |
| UBW1E221MPD | Nichicon | CAP ALUM 220UF 20% 25V RADIAL | 67% | View |
| 35RX30220M10X12.5 | Rubycon | CAP ALUM 220UF 20% 35V RADIAL | 66% | View |
Submit your RFQ for 63RX30220MG412.5X20 and get a quote within 24 hours.
