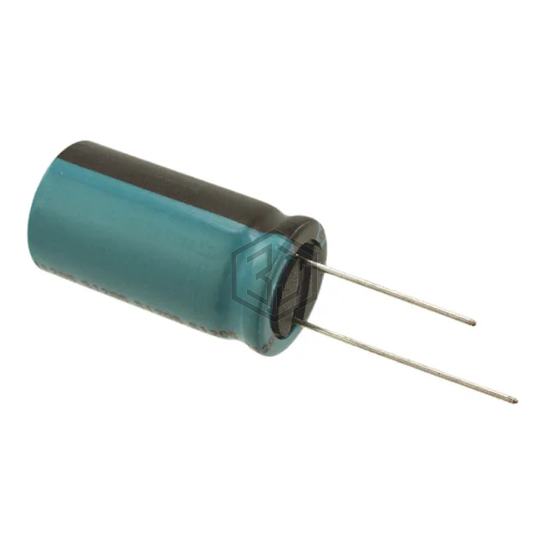

CAP ALUM 1000UF 20% 63V RADIAL
63RX301000MGC16X31.5 is a Aluminum Electrolytic Capacitors manufactured by Rubycon. CAP ALUM 1000UF 20% 63V RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 130°C, voltage - rated 63 V, package / case Radial, Can.
In Stock: 5,101
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 1000 µF |
| Tolerance | ±20% |
| Voltage - Rated | 63 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 4000 Hrs @ 130°C |
| Operating Temperature | -40°C ~ 130°C |
| Polarization | Polar |
| Ratings | AEC-Q200 |
| Applications | Automotive |
| Ripple Current @ Low Frequency | 1.388 A @ 120 Hz |
| Ripple Current @ High Frequency | 1.85 A @ 100 kHz |
| Impedance | 56 mOhms |
| Lead Spacing | 0.295" (7.50mm) |
| Size / Dimension | 0.630" Dia (16.00mm) |
| Height - Seated (Max) | 1.319" (33.50mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| MAL216031102E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 1000UF 20% 50V RADIAL | 87% | View |
| UBW1V102MHD | Nichicon | CAP ALUM 1000UF 20% 35V RADIAL | 75% | View |
| MAL216065102E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 1000UF 20% 50V RADIAL | 74% | View |
| EEU-TP1V102B | Panasonic Electronic Components | CAP ALUM 1000UF 20% 35V RADIAL | 74% | View |
| UBW1E102MHD | Nichicon | CAP ALUM 1000UF 20% 25V RADIAL | 71% | View |
| 35RX301000MZO12.5X25 | Rubycon | CAP ALUM 1000UF 20% 35V RADIAL | 67% | View |
Submit your RFQ for 63RX301000MGC16X31.5 and get a quote within 24 hours.
