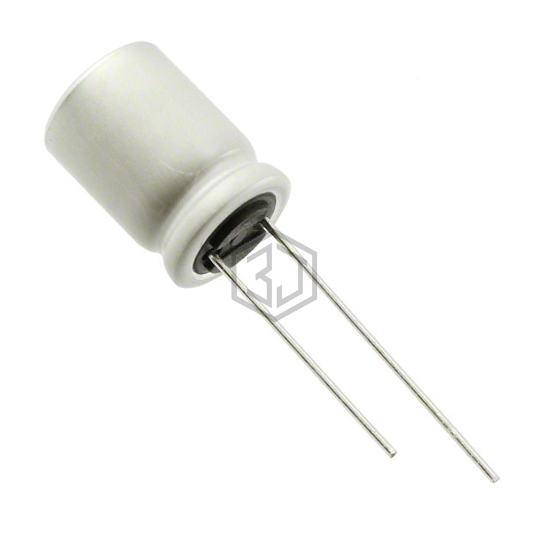

CAP ALUM POLY 47UF 20% 63V T/H
63PZA47M10X13 is a Aluminum - Polymer Capacitors manufactured by Rubycon. CAP ALUM POLY 47UF 20% 63V T/H. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage - rated 63 V, package / case Radial, Can.
In Stock: 3,833
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Type | Polymer |
| Capacitance | 47 µF |
| Tolerance | ±20% |
| Voltage - Rated | 63 V |
| ESR (Equivalent Series Resistance) | 29mOhm |
| Lifetime @ Temp. | 3000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Ratings | AEC-Q200 |
| Applications | Automotive |
| Features | - |
| Ripple Current @ Low Frequency | 130 mA @ 120 Hz |
| Ripple Current @ High Frequency | 2.6 A @ 100 kHz |
| Impedance | - |
| Lead Spacing | 0.197" (5.00mm) |
| Size / Dimension | 0.394" Dia (10.00mm) |
| Height - Seated (Max) | 0.571" (14.50mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
63PZA47M10X13 is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| PLX1H470MDL1 | Nichicon | CAP ALUM POLY 47UF 20% 50V T/H | 90% | View |
| 476AVG050MFBJ | Cornell Dubilier / Illinois Capacitor | CAP ALUM POLY 47UF 20% 50V T/H | 86% | View |
| 476AVG100MGBJ | Cornell Dubilier / Illinois Capacitor | CAP ALUM POLY 47UF 20% 100V T/H | 76% | View |
| RNU1H470MDN1 | Nichicon | CAP ALUM POLY 47UF 20% 50V T/H | 75% | View |
| RNU1H470MDN1PH | Nichicon | CAP ALUM POLY 47UF 20% 50V T/H | 75% | View |
| UGV1E470MNN6305 | Chinsan (Elite) | CONDUCTIVE POLYMER SOLID CAPACIT | 71% | View |
Submit your RFQ for 63PZA47M10X13 and get a quote within 24 hours.
