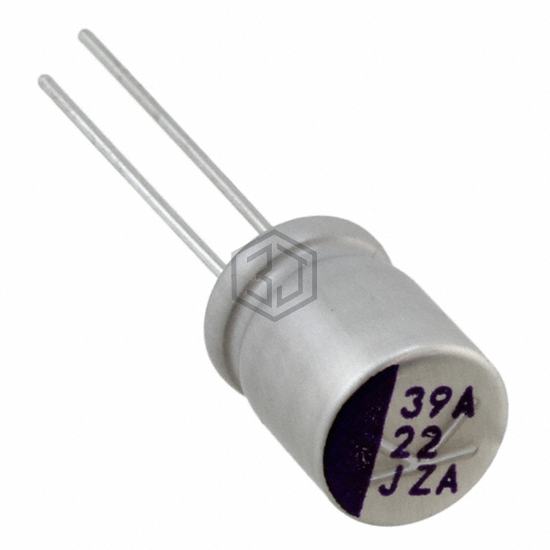

CAP ALUM POLY 22UF 20% 63V T/H
63PZA22M8X10 is a Aluminum - Polymer Capacitors manufactured by Rubycon. CAP ALUM POLY 22UF 20% 63V T/H. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage - rated 63 V, package / case Radial, Can.
In Stock: 3,474
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Type | Polymer |
| Capacitance | 22 µF |
| Tolerance | ±20% |
| Voltage - Rated | 63 V |
| ESR (Equivalent Series Resistance) | 35mOhm |
| Lifetime @ Temp. | 3000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Ratings | AEC-Q200 |
| Applications | Automotive |
| Features | - |
| Ripple Current @ Low Frequency | 90 mA @ 120 Hz |
| Ripple Current @ High Frequency | 1.8 A @ 100 kHz |
| Impedance | - |
| Lead Spacing | 0.138" (3.50mm) |
| Size / Dimension | 0.315" Dia (8.00mm) |
| Height - Seated (Max) | 0.394" (10.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
63PZA22M8X10 is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| A759EK226M1JAAE054 | KEMET | CAP ALUM POLY 22UF 20% 63V TH | 95% | View |
| PLX1H220MCL1 | Nichicon | CAP ALUM POLY 22UF 20% 50V T/H | 90% | View |
| PLF1D220MCL2TP | Nichicon | CAP ALUM POLY 22UF 20% 20V T/H | 70% | View |
| A759MS186M2CAAE090 | KEMET | CAP ALUM POLY 18UF 20% 160V T/H | 68% | View |
| RNS1D220MDS1 | Nichicon | CAP ALUM POLY 22UF 20% 20V T/H | 60% | View |
| 32SEQP18M | Panasonic Electronic Components | CAP ALUM POLY 18UF 20% 32V T/H | 56% | View |
Submit your RFQ for 63PZA22M8X10 and get a quote within 24 hours.
