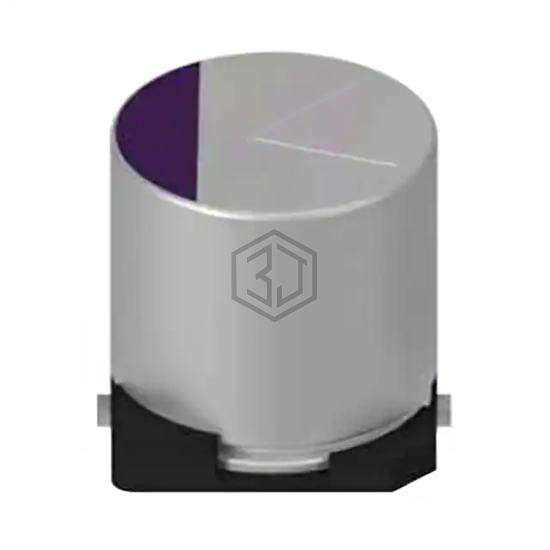

CAP ALUM POLY HYB 22UF 63V SMD
63PFV22M6.3X8 is a Aluminum - Polymer Capacitors manufactured by Rubycon. CAP ALUM POLY HYB 22UF 63V SMD. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 125°C, voltage - rated 63 V, package / case Radial, Can - SMD.
In Stock: 1,997
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Hybrid |
| Capacitance | 22 µF |
| Tolerance | ±20% |
| Voltage - Rated | 63 V |
| ESR (Equivalent Series Resistance) | 80mOhm |
| Lifetime @ Temp. | 4000 Hrs @ 125°C |
| Operating Temperature | -55°C ~ 125°C |
| Ratings | AEC-Q200 |
| Applications | Automotive |
| Features | - |
| Ripple Current @ Low Frequency | 450 mA @ 120 Hz |
| Ripple Current @ High Frequency | 900 mA @ 100 kHz |
| Impedance | - |
| Lead Spacing | - |
| Size / Dimension | 0.248" Dia (6.30mm) |
| Height - Seated (Max) | 0.315" (8.00mm) |
| Surface Mount Land Size | 0.260" L x 0.260" W (6.60mm x 6.60mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| EEH-ZC1J220XV | Panasonic Electronic Components | CAP ALUM POLY 22UF 20% 63V SMD | 74% | View |
| GYC1J220MCW1GS | Nichicon | CAP ALUM POL HY 22UF 20% 63V SMD | 71% | View |
| EEH-ZC1K220V | Panasonic Electronic Components | CAP ALUM POLY 22UF 20% 80V SMD | 63% | View |
| EEH-ZC1K220P | Panasonic Electronic Components | CAP ALUM POLY HYB 22UF 80V SMD | 63% | View |
| EEH-ZC1H220V | Panasonic Electronic Components | CAP ALUM POLY 22UF 20% 50V SMD | 62% | View |
| HZC226M050D16T-F | Cornell Dubilier Electronics (CDE) | CAP ALUM POLY 22UF 20% 50V SMD | 62% | View |
Submit your RFQ for 63PFV22M6.3X8 and get a quote within 24 hours.
