CAP ALUM 4700UF 20% 63V SCREW

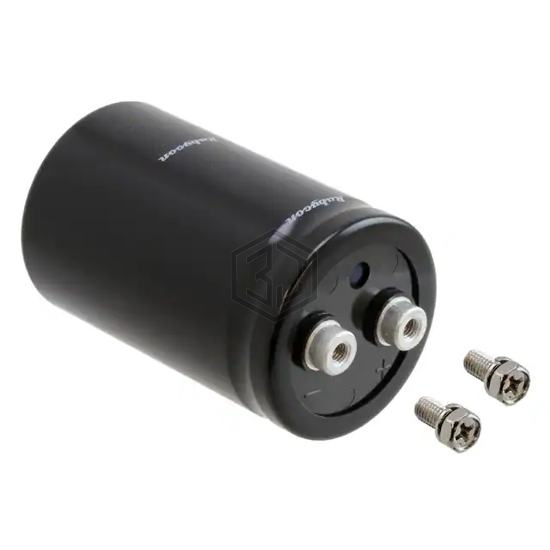

63LSW4700MEFC36X50 is a Aluminum Electrolytic Capacitors manufactured by Rubycon. CAP ALUM 4700UF 20% 63V SCREW. Key specifications: mounting type Chassis Mount, operating temperature -40°C ~ 105°C, voltage - rated 63 V, package / case Radial, Can - Screw Terminals.
In Stock: 9,856
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 4700 µF |
| Tolerance | ±20% |
| Voltage - Rated | 63 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 3000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 3.2 A @ 120 Hz |
| Ripple Current @ High Frequency | 3.52 A @ 10 kHz |
| Impedance | - |
| Lead Spacing | 0.500" (12.70mm) |
| Size / Dimension | 1.417" Dia (36.00mm) |
| Height - Seated (Max) | 2.126" (54.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Chassis Mount |
| Package / Case | Radial, Can - Screw Terminals |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| E32D630LPN492WAA5U | United Chemi-Con | CAP ALUM 4900UF 63V SCREW | 97% | View |
| E32D630LPN492WAA5M | United Chemi-Con | CAP ALUM 4900UF 63V SCREW | 97% | View |
| E32D750HPN502TDB7N | United Chemi-Con | CAP ALUM 5000UF 75V SCREW | 84% | View |
| E32D400HPN492UAE3U | Chemi-Con | CAP ALUM 4.9MF 40V SCREW CHAS MT | 68% | View |
| ALS40A472DB063 | KEMET | CAP ALUM 4700UF 20% 63V SCREW | 64% | View |
| E32D231CDS482MDA5U | United Chemi-Con | CAP ALUM 4800UF 20% 230V SCREW | 54% | View |
Submit your RFQ for 63LSW4700MEFC36X50 and get a quote within 24 hours.
