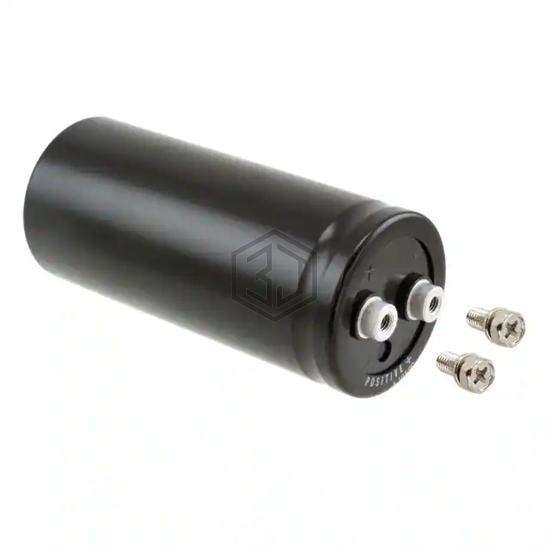

CAP ALUM 33000UF 20% 63V SCREW
63LSW33000MNB51X118 is a Aluminum Electrolytic Capacitors manufactured by Rubycon. CAP ALUM 33000UF 20% 63V SCREW. Key specifications: mounting type Chassis Mount, operating temperature -40°C ~ 105°C, voltage - rated 63 V, package / case Radial, Can - Screw Terminals.
In Stock: 2,710
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 33000 µF |
| Tolerance | ±20% |
| Voltage - Rated | 63 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 3000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 10.3 A @ 120 Hz |
| Ripple Current @ High Frequency | 11.33 A @ 10 kHz |
| Impedance | - |
| Lead Spacing | 0.858" (21.80mm) |
| Size / Dimension | 2.008" Dia (51.00mm) |
| Height - Seated (Max) | 4.803" (122.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Chassis Mount |
| Package / Case | Radial, Can - Screw Terminals |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| E32D630HLS333QD79M | United Chemi-Con | CAP ALUM 33000UF 63V SCREW | 100% | View |
| LNT1H333MSEN | Nichicon | CAP ALUM 33000UF 20% 50V SCREW | 86% | View |
| B41580A7339M000 | EPCOS - TDK Electronics | CAP ALUM 33000UF 20% 40V SCREW | 79% | View |
| E32D350LPN333MC54U | United Chemi-Con | CAP ALUM 33000UF 20% 35V SCREW | 74% | View |
| B41580A9339M003 | EPCOS - TDK Electronics | CAP ALUM 33000UF 20% 100V SCREW | 58% | View |
| B41560A9339M000 | EPCOS - TDK Electronics | CAP ALUM 33000UF 20% 100V SCREW | 58% | View |
