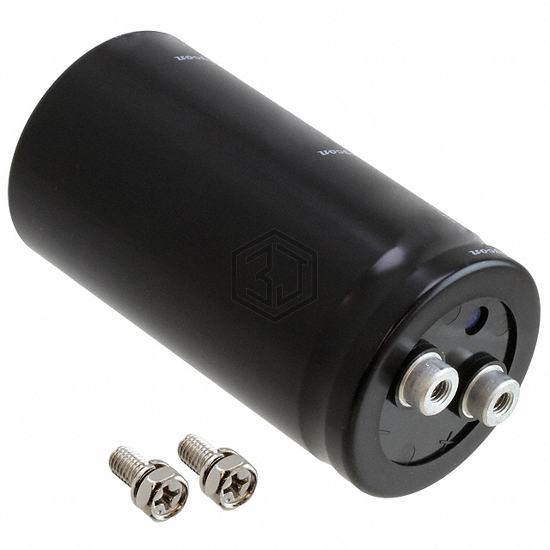

CAP ALUM 33000UF 20% 63V SCREW
63LSQ33000MEFC51X98 is a Aluminum Electrolytic Capacitors manufactured by Rubycon. CAP ALUM 33000UF 20% 63V SCREW. Key specifications: mounting type Chassis Mount, operating temperature -40°C ~ 85°C, voltage - rated 63 V, package / case Radial, Can - Screw Terminals.
In Stock: 6,315
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 33000 µF |
| Tolerance | ±20% |
| Voltage - Rated | 63 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 3000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 8.8 A @ 120 Hz |
| Ripple Current @ High Frequency | 9.68 A @ 10 kHz |
| Impedance | - |
| Lead Spacing | 0.858" (21.80mm) |
| Size / Dimension | 2.008" Dia (51.00mm) |
| Height - Seated (Max) | 4.016" (102.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Chassis Mount |
| Package / Case | Radial, Can - Screw Terminals |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| LNR1J333MSEB | Nichicon | CAP ALUM 33000UF 20% 63V SCREW | 99% | View |
| LNR1J333MSEN | Nichicon | CAP ALUM 33000UF 20% 63V SCREW | 99% | View |
| E36D630HLS333MAE3U | United Chemi-Con | CAP ALUM 33000UF 20% 63V SCREW | 85% | View |
| 80LSQ33000M51X118 | Rubycon | CAP ALUM 33000UF 20% 80V SCREW | 84% | View |
| ALS70H333KE063 | KEMET | CAP ALUM 33000UF 20% 63V SCREW | 70% | View |
| ALS31A333KF063 | KEMET | CAP ALUM 33000UF 20% 63V SCREW | 69% | View |
Submit your RFQ for 63LSQ33000MEFC51X98 and get a quote within 24 hours.
