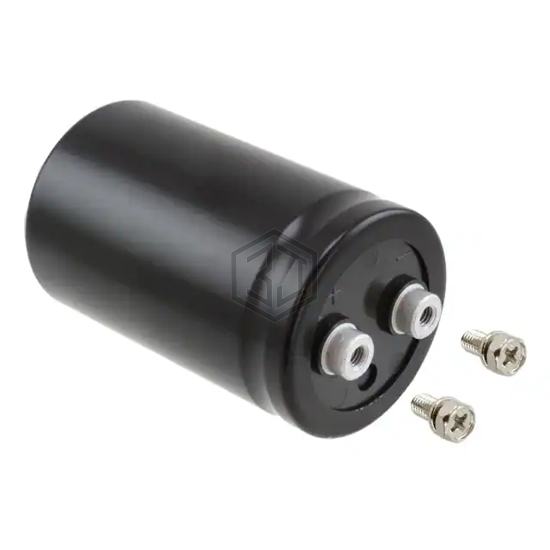

CAP ALUM 22000UF 20% 63V SCREW
63LSQ22000MEFC51X83 is a Aluminum Electrolytic Capacitors manufactured by Rubycon. CAP ALUM 22000UF 20% 63V SCREW. Key specifications: mounting type Chassis Mount, operating temperature -40°C ~ 85°C, voltage - rated 63 V, package / case Radial, Can - Screw Terminals.
In Stock: 2,070
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 22000 µF |
| Tolerance | ±20% |
| Voltage - Rated | 63 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 3000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 7.1 A @ 120 Hz |
| Ripple Current @ High Frequency | 7.81 A @ 10 kHz |
| Impedance | - |
| Lead Spacing | 0.858" (21.80mm) |
| Size / Dimension | 2.008" Dia (51.00mm) |
| Height - Seated (Max) | 3.386" (86.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Chassis Mount |
| Package / Case | Radial, Can - Screw Terminals |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| E36D750HPN223TEB7U | United Chemi-Con | CAP ALUM 22000UF 75V SCREW | 89% | View |
| E36D750LPN223TD79U | United Chemi-Con | CAP ALUM 22000UF 75V SCREW | 89% | View |
| E36D500HPS223MC54U | United Chemi-Con | CAP ALUM 22000UF 20% 50V SCREW | 87% | View |
| E32D500HLS223MC79U | United Chemi-Con | CAP ALUM 22000UF 20% 50V SCREW | 85% | View |
| LNT1V223MSEN | Nichicon | CAP ALUM 22000UF 20% 35V SCREW | 75% | View |
| 36DX223G015AC2A | Vishay Sprague | CAP ALUM 22000UF 15V SCREW | 56% | View |
Submit your RFQ for 63LSQ22000MEFC51X83 and get a quote within 24 hours.
