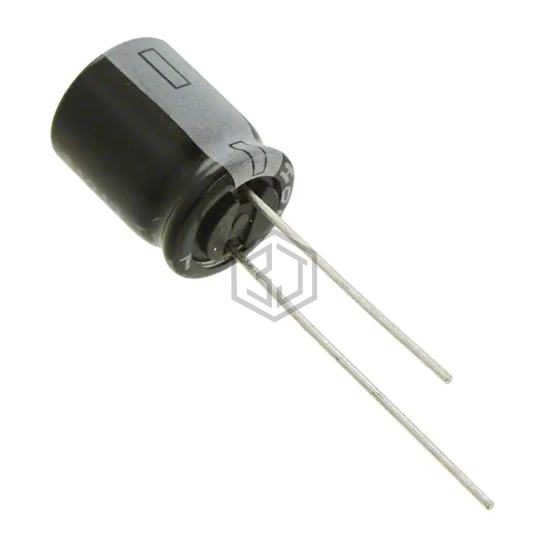

CAP ALUM 1200UF 20% 6.3V RADIAL
6.3ZLH1200MEFC10X12.5 is a Aluminum Electrolytic Capacitors manufactured by Rubycon. CAP ALUM 1200UF 20% 6.3V RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 6.3 V, package / case Radial, Can.
In Stock: 5,628
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 1200 µF |
| Tolerance | ±20% |
| Voltage - Rated | 6.3 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 10000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 798 mA @ 120 Hz |
| Ripple Current @ High Frequency | 1.33 A @ 100 kHz |
| Impedance | 39 mOhms |
| Lead Spacing | 0.197" (5.00mm) |
| Size / Dimension | 0.394" Dia (10.00mm) |
| Height - Seated (Max) | 0.551" (14.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| EEU-FR0J122L | Panasonic Electronic Components | CAP ALUM 1200UF 20% 6.3V RADIAL | 93% | View |
| EEU-FM0J122 | Panasonic Electronic Components | CAP ALUM 1200UF 20% 6.3V RADIAL | 80% | View |
| EGXF250ELL122MJ20S | United Chemi-Con | CAP ALUM 1200UF 20% 25V RAD TH | 67% | View |
| 80MXC1200MEFCSN22X30 | Rubycon | CAP ALUM 1200UF 20% 80V SNAP | 60% | View |
| B41252B128M | EPCOS - TDK Electronics | CAP ALUM 1200UF 20% 80V SNAP | 56% | View |
| LGY2A122MELB25 | Nichicon | CAP ALUM 1200UF 20% 100V SNAP | 55% | View |
Submit your RFQ for 6.3ZLH1200MEFC10X12.5 and get a quote within 24 hours.
