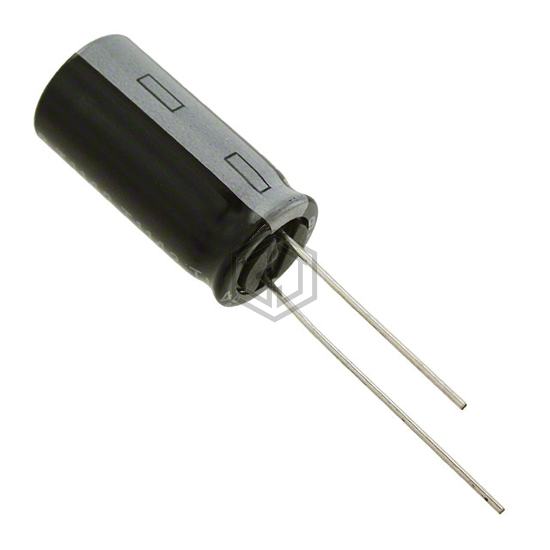

CAP ALUM 1500UF 20% 6.3V RADIAL
6.3YXG1500M10X20 is a Aluminum Electrolytic Capacitors manufactured by Rubycon. CAP ALUM 1500UF 20% 6.3V RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 6.3 V, package / case Radial, Can.
In Stock: 4,005
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 1500 µF |
| Tolerance | ±20% |
| Voltage - Rated | 6.3 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 5000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 840 mA @ 120 Hz |
| Ripple Current @ High Frequency | 1.4 A @ 100 kHz |
| Impedance | 46 mOhms |
| Lead Spacing | 0.197" (5.00mm) |
| Size / Dimension | 0.394" Dia (10.00mm) |
| Height - Seated (Max) | 0.866" (22.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
6.3YXG1500M10X20 is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 10YXH1500MEFCT810X23 | Rubycon | CAP ALUM 1500UF 20% 10V RADIAL | 80% | View |
| 860160275034 | Würth Elektronik | CAP ALUM 1500UF 20% 10V RADIAL | 73% | View |
| ELXY250EC3152ML20S | United Chemi-Con | CAP ALUM 1500UF 20% 25V RADIAL | 73% | View |
| MAL215065152E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 1500UF 20% 16V RADIAL | 70% | View |
| 381LX152M050J202 | Cornell Dubilier Electronics (CDE) | CAP ALUM 1500UF 20% 50V SNAP | 70% | View |
| MAL213656152E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 1500UF 20% 25V RADIAL | 64% | View |
Submit your RFQ for 6.3YXG1500M10X20 and get a quote within 24 hours.
