CAP ALUM 680UF 20% 6.3V RADIAL

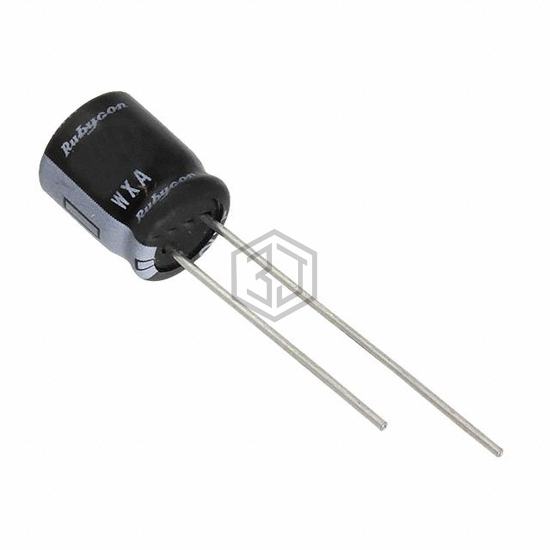

6.3WXA680MEFCT78X9 is a Aluminum Electrolytic Capacitors manufactured by Rubycon. CAP ALUM 680UF 20% 6.3V RADIAL. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage - rated 6.3 V, package / case Radial, Can.
In Stock: 6,662
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 680 µF |
| Tolerance | ±20% |
| Voltage - Rated | 6.3 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 2000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | AEC-Q200 |
| Applications | Automotive |
| Ripple Current @ Low Frequency | 300 mA @ 120 Hz |
| Ripple Current @ High Frequency | 360 mA @ 10 kHz |
| Impedance | - |
| Lead Spacing | 0.138" (3.50mm) |
| Size / Dimension | 0.315" Dia (8.00mm) |
| Height - Seated (Max) | 0.413" (10.50mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| RXW681M0JBK-1012S | Surge | CAP ALUM 6.3V POLAR | 74% | View |
| MAL212363681 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 680UF 20% 6.3V AXIAL | 73% | View |
| UPS1A681MPD | Nichicon | CAP ALUM 680UF 20% 10V RADIAL | 65% | View |
| ELXZ100ELL681MH15D | United Chemi-Con | CAP ALUM 680UF 20% 10V RADIAL | 60% | View |
| ELXY100ETC681MH20D | United Chemi-Con | CAP ALUM 680UF 20% 10V RADIAL | 59% | View |
| 601D687G050JJ1 | Vishay Sprague | CAP ALUM 680UF 50V AXIAL | 56% | View |
