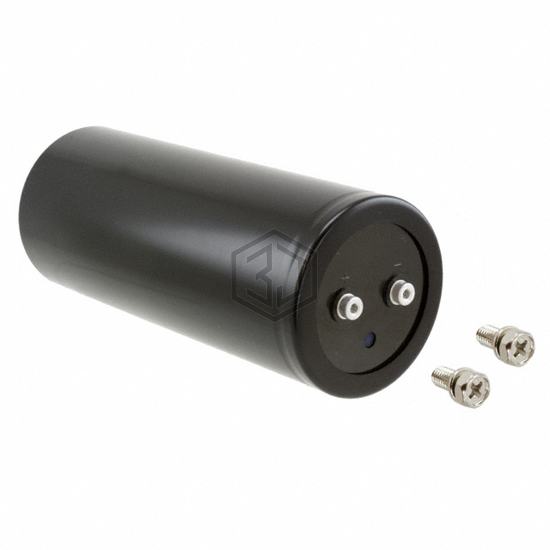

CAP ALUM 8200UF 20% 580V SCREW
580LSU8200MNB90X241 is a Aluminum Electrolytic Capacitors manufactured by Rubycon. CAP ALUM 8200UF 20% 580V SCREW. Key specifications: mounting type Chassis Mount, operating temperature -25°C ~ 85°C, voltage - rated 580 V, package / case Radial, Can - Screw Terminals.
In Stock: 7,656
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 8200 µF |
| Tolerance | ±20% |
| Voltage - Rated | 580 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 3000 Hrs @ 85°C |
| Operating Temperature | -25°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 20.4 A @ 120 Hz |
| Ripple Current @ High Frequency | 26.52 A @ 10 kHz |
| Impedance | - |
| Lead Spacing | 1.236" (31.40mm) |
| Size / Dimension | 3.543" Dia (90.00mm) |
| Height - Seated (Max) | 9.606" (244.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Chassis Mount |
| Package / Case | Radial, Can - Screw Terminals |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| ALS71A822QW550 | KEMET | CAP ALUM 8200UF 20% 550V SCREW | 94% | View |
| LNX2W822MSEJBN | Nichicon | CAP ALUM 8200UF 20% 450V SCREW | 91% | View |
| LNY2W822MSEHBN | Nichicon | CAP ALUM 8200UF 20% 450V SCREW | 91% | View |
| ALS70H822NJ350 | KEMET | CAP ALUM 8200UF 20% 350V SCREW | 78% | View |
| E37L351CPN822MFB7U | United Chemi-Con | CAP ALUM 8200UF 20% 350V SCREW | 78% | View |
| LNC2W822MSEHBB | Nichicon | CAP ALUM 8200UF 20% 450V SCREW | 77% | View |
Submit your RFQ for 580LSU8200MNB90X241 and get a quote within 24 hours.
