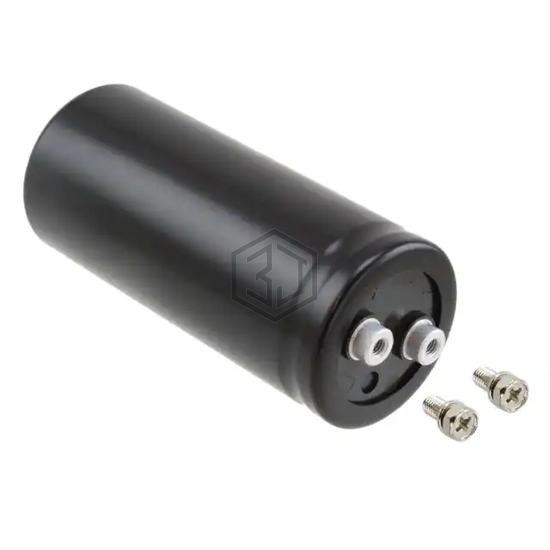

CAP ALUM 4700UF 20% 580V SCREW
580LSU4700MNB77X191 is a Aluminum Electrolytic Capacitors manufactured by Rubycon. CAP ALUM 4700UF 20% 580V SCREW. Key specifications: mounting type Chassis Mount, operating temperature -25°C ~ 85°C, voltage - rated 580 V, package / case Radial, Can - Screw Terminals.
In Stock: 2,203
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 4700 µF |
| Tolerance | ±20% |
| Voltage - Rated | 580 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 3000 Hrs @ 85°C |
| Operating Temperature | -25°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 12.2 A @ 120 Hz |
| Ripple Current @ High Frequency | 15.86 A @ 10 kHz |
| Impedance | - |
| Lead Spacing | 1.236" (31.40mm) |
| Size / Dimension | 3.032" Dia (77.00mm) |
| Height - Seated (Max) | 7.638" (194.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Chassis Mount |
| Package / Case | Radial, Can - Screw Terminals |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| B43701B5478M000 | EPCOS - TDK Electronics | CAP ALUM 4700UF 20% 450V SCREW | 88% | View |
| MAL250119472E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 4700UF 20% 500V SCREW | 84% | View |
| B43762B9478M000 | EPCOS - TDK Electronics | CAP ALUM 4700UF 20% 400V SCREW | 82% | View |
| B43741B9478M000 | EPCOS - TDK Electronics | CAP ALUM 4700UF 20% 400V SCREW | 81% | View |
| ALS31A472NF400 | KEMET | CAP ALUM 4700UF 20% 400V SCREW | 78% | View |
| LQR2W472MSEJ | Nichicon | CAP ALUM 4700UF 20% 450V SCREW | 74% | View |
Submit your RFQ for 580LSU4700MNB77X191 and get a quote within 24 hours.
