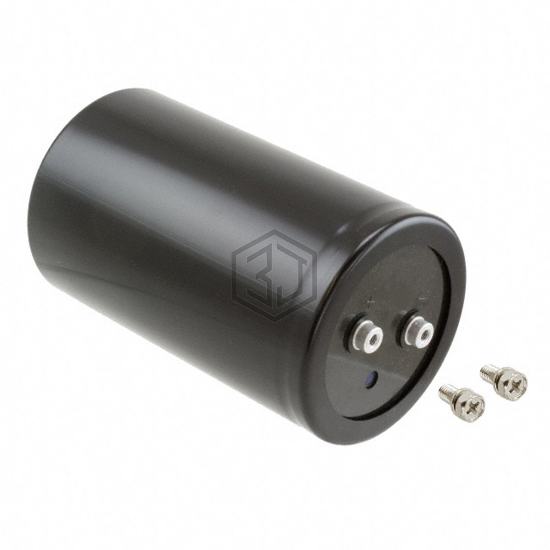

CAP ALUM 3300UF 20% 580V SCREW
580LSU3300MNB77X151 is a Aluminum Electrolytic Capacitors manufactured by Rubycon. CAP ALUM 3300UF 20% 580V SCREW. Key specifications: mounting type Chassis Mount, operating temperature -25°C ~ 85°C, voltage - rated 580 V, package / case Radial, Can - Screw Terminals.
In Stock: 4,181
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 3300 µF |
| Tolerance | ±20% |
| Voltage - Rated | 580 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 3000 Hrs @ 85°C |
| Operating Temperature | -25°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 9.9 A @ 120 Hz |
| Ripple Current @ High Frequency | 12.87 A @ 10 kHz |
| Impedance | - |
| Lead Spacing | 1.236" (31.40mm) |
| Size / Dimension | 3.032" Dia (77.00mm) |
| Height - Seated (Max) | 6.063" (154.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Chassis Mount |
| Package / Case | Radial, Can - Screw Terminals |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| B43704A7338M000 | EPCOS - TDK Electronics | CAP ALUM 3300UF 20% 550V SCREW | 90% | View |
| LNU2H332MSEHBN | Nichicon | CAP ALUM 3300UF 20% 500V SCREW | 89% | View |
| B43564B5338M7 | EPCOS - TDK Electronics | CAP ALUM 3300UF 20% 450V SCREW | 84% | View |
| B43564C5338M7 | EPCOS - TDK Electronics | CAP ALUM 3300UF 20% 450V SCREW | 84% | View |
| MAL250117332E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 3300UF 20% 450V SCREW | 83% | View |
| ALS30A332NF450 | KEMET | CAP ALUM 3300UF 20% 450V SCREW | 72% | View |
Submit your RFQ for 580LSU3300MNB77X151 and get a quote within 24 hours.
