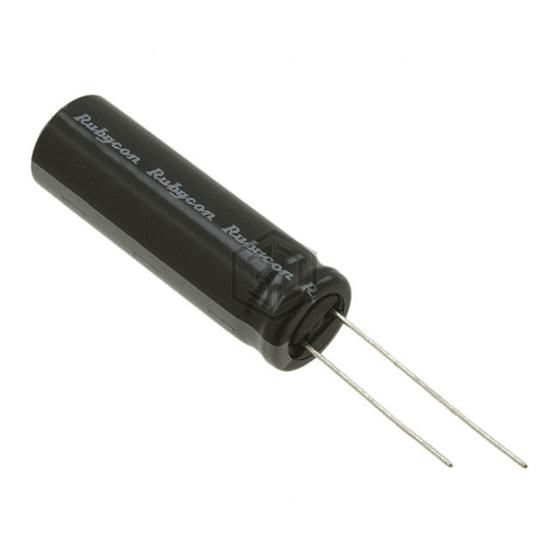

CAP ALUM 820UF 20% 50V RADIAL
50YXG820MEFC12.5X35 is a Aluminum Electrolytic Capacitors manufactured by Rubycon. CAP ALUM 820UF 20% 50V RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 50 V, package / case Radial, Can.
In Stock: 2,200
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 820 µF |
| Tolerance | ±20% |
| Voltage - Rated | 50 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 6000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 1.506 A @ 120 Hz |
| Ripple Current @ High Frequency | 2.51 A @ 100 kHz |
| Impedance | 25 mOhms |
| Lead Spacing | 0.197" (5.00mm) |
| Size / Dimension | 0.492" Dia (12.50mm) |
| Height - Seated (Max) | 1.457" (37.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| ELXV500ELL821ML25S | United Chemi-Con | CAP ALUM 820UF 20% 50V RADIAL | 85% | View |
| EKYB350ELL821MJ25S | United Chemi-Con | CAP ALUM 820UF 20% 35V RADIAL | 77% | View |
| 200MXC820MEFCSN22X50 | Rubycon | CAP ALUM 820UF 20% 200V SNAP | 69% | View |
| ELHS451VSN821MA60S | United Chemi-Con | CAP ALUM 820UF 20% 450V SNAP | 58% | View |
| KY25VB821M10X25LL | United Chemi-Con | CAP ALUM 820UF 20% 25V RADIAL | 58% | View |
| LAR2D821MELA35 | Nichicon | CAP ALUM 820UF 20% 200V SNAP | 57% | View |
Submit your RFQ for 50YXG820MEFC12.5X35 and get a quote within 24 hours.
