CAP ALUM 560UF 20% 50V RADIAL

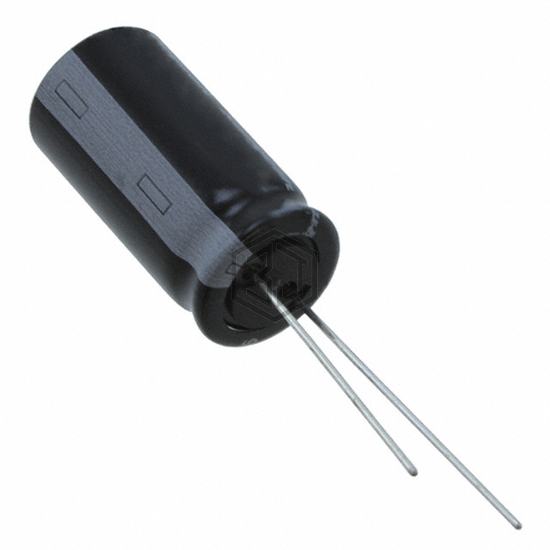

50YXG560M12.5X25 is a Aluminum Electrolytic Capacitors manufactured by Rubycon. CAP ALUM 560UF 20% 50V RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 50 V, package / case Radial, Can.
In Stock: 1,547
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 560 µF |
| Tolerance | ±20% |
| Voltage - Rated | 50 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 6000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 1.073 A @ 120 Hz |
| Ripple Current @ High Frequency | 1.95 A @ 100 kHz |
| Impedance | 34 mOhms |
| Lead Spacing | 0.197" (5.00mm) |
| Size / Dimension | 0.492" Dia (12.50mm) |
| Height - Seated (Max) | 1.063" (27.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
50YXG560M12.5X25 is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 601D567G050GL2 | Vishay Sprague | CAP ALUM 560UF 50V AXIAL | 100% | View |
| 50YXH560MEFCG412.5X25 | Rubycon | CAP ALUM 560UF 20% 50V RADIAL | 100% | View |
| EK1V561MNN1025 | Chinsan (Elite) | ALUMINUM ELECTROLYTIC CAPACITORS | 87% | View |
| EKZH350ELL561MJ20S | United Chemi-Con | CAP ALUM 560UF 20% 35V RADIAL | 82% | View |
| ELXV101ELL561MM35S | United Chemi-Con | CAP ALUM 560UF 20% 100V RADIAL | 75% | View |
| EEU-FR1J561L | Panasonic Electronic Components | CAP ALUM 560UF 20% 63V RADIAL | 72% | View |
Submit your RFQ for 50YXG560M12.5X25 and get a quote within 24 hours.
