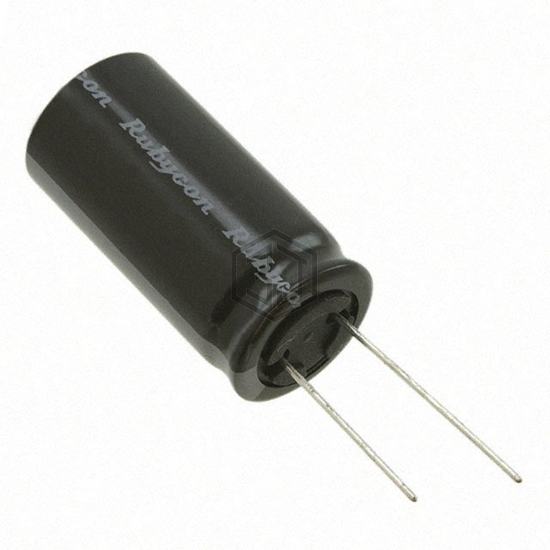

CAP ALUM 2200UF 20% 50V RADIAL
50YXG2200MEFCGC18X35.5 is a Aluminum Electrolytic Capacitors manufactured by Rubycon. CAP ALUM 2200UF 20% 50V RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 50 V, package / case Radial, Can.
In Stock: 1,210
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 2200 µF |
| Tolerance | ±20% |
| Voltage - Rated | 50 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 6000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 2.576 A @ 120 Hz |
| Ripple Current @ High Frequency | 3.68 A @ 100 kHz |
| Impedance | 17 mOhms |
| Lead Spacing | 0.295" (7.50mm) |
| Size / Dimension | 0.709" Dia (18.00mm) |
| Height - Seated (Max) | 1.476" (37.50mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| EKYB630ELL222MM40S | United Chemi-Con | CAP ALUM 2200UF 20% 63V RADIAL | 92% | View |
| B41796B7228Q001 | EPCOS - TDK Electronics | CAP ALUM 2200UF 40V T/H | 84% | View |
| MAL215068222E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 2200UF 20% 63V RADIAL | 79% | View |
| MAL224690225E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 2200UF 20% 35V RADIAL | 78% | View |
| 50PX2200MEFC16X31.5 | Rubycon | CAP ALUM 2200UF 20% 50V RADIAL | 72% | View |
| 80MXC2200MEFC25X30 | Rubycon | CAP ALUM 2200UF 20% 80V SNAP | 69% | View |
