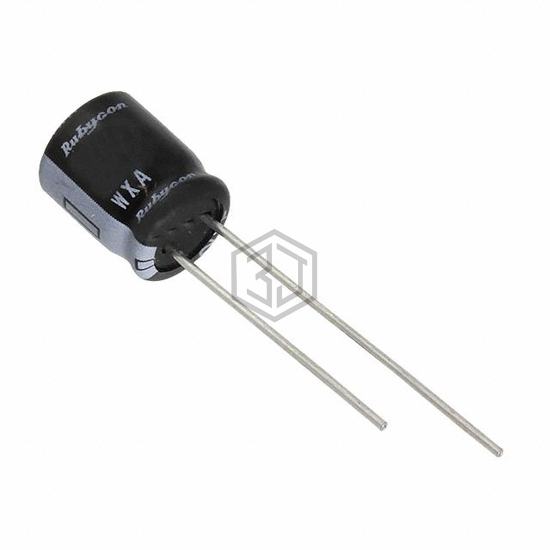

CAP ALUM 100UF 20% 50V RADIAL
50WXA100MEFCTA8X9 is a Aluminum Electrolytic Capacitors manufactured by Rubycon. CAP ALUM 100UF 20% 50V RADIAL. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage - rated 50 V, package / case Radial, Can.
In Stock: 8,225
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 100 µF |
| Tolerance | ±20% |
| Voltage - Rated | 50 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 2000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | AEC-Q200 |
| Applications | Automotive |
| Ripple Current @ Low Frequency | 200 mA @ 120 Hz |
| Ripple Current @ High Frequency | 240 mA @ 10 kHz |
| Impedance | - |
| Lead Spacing | 0.138" (3.50mm) |
| Size / Dimension | 0.315" Dia (8.00mm) |
| Height - Seated (Max) | 0.413" (10.50mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| UPS1H101MPD1TA | Nichicon | CAP ALUM 100UF 20% 50V RADIAL | 88% | View |
| 672D107H060EK5J | Vishay Sprague | CAP ALUM 100UF 60V RADIAL | 88% | View |
| EKMG630ELL101MJC5S | United Chemi-Con | CAP ALUM 100UF 20% 63V RADIAL | 84% | View |
| EEU-HD1V101 | Panasonic Electronic Components | CAP ALUM 100UF 20% 35V RADIAL | 81% | View |
| RXW101M1EBK-0611S | SURGE | CAP ALUM 100UF 20% 25V RADIAL | 65% | View |
| ELXZ160ELL101MFB5D | United Chemi-Con | CAP ALUM 100UF 20% 16V RADIAL | 61% | View |
Submit your RFQ for 50WXA100MEFCTA8X9 and get a quote within 24 hours.
