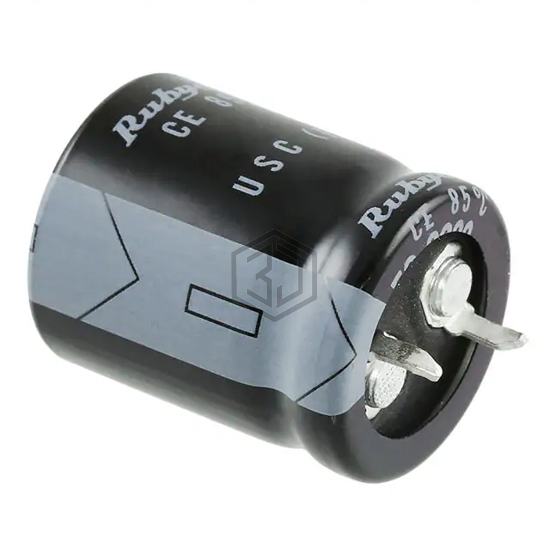

CAP ALUM 2200UF 20% 50V SNAP
50USC2200MEFCSN20X25 is a Aluminum Electrolytic Capacitors manufactured by Rubycon. CAP ALUM 2200UF 20% 50V SNAP. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 85°C, voltage - rated 50 V, package / case Radial, Can - Snap-In.
In Stock: 2,566
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 2200 µF |
| Tolerance | ±20% |
| Voltage - Rated | 50 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 3000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 2.07 A @ 120 Hz |
| Ripple Current @ High Frequency | 2.3805 A @ 10 kHz |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 0.787" Dia (20.00mm) |
| Height - Seated (Max) | 1.063" (27.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 860020680030 | Würth Elektronik | CAP ALUM 2200UF 20% 50V RADIAL | 88% | View |
| EKMH630VNN222MQ30W | United Chemi-Con | CAP ALUM 2200UF 20% 63V SNAP | 86% | View |
| NEV2200M63HI | NTE Electronics, Inc | CAP ALUM 2200UF 20% 63V RADIAL | 85% | View |
| LGU1K222MELZ | Nichicon | CAP ALUM 2200UF 20% 80V SNAP | 85% | View |
| MAL215818222E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 2200UF 20% 63V SNAP | 78% | View |
| B41858C7228M9 | EPCOS - TDK Electronics | CAP ALUM 2200UF 20% 35V RADIAL | 78% | View |
Submit your RFQ for 50USC2200MEFCSN20X25 and get a quote within 24 hours.
