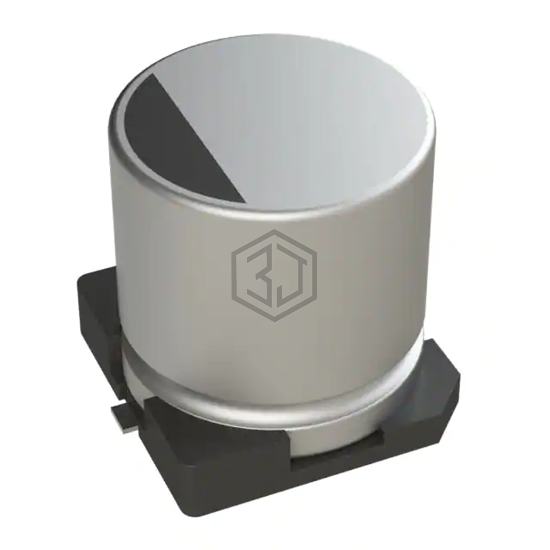

CAP ALUM 330UF 20% 50V SMD
50TZV330M12.5X13.5 is a Aluminum Electrolytic Capacitors manufactured by Rubycon. CAP ALUM 330UF 20% 50V SMD. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 105°C, voltage - rated 50 V, package / case Radial, Can - SMD.
In Stock: 1,501
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 330 µF |
| Tolerance | ±20% |
| Voltage - Rated | 50 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 2000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | AEC-Q200 |
| Applications | Automotive |
| Ripple Current @ Low Frequency | - |
| Ripple Current @ High Frequency | - |
| Impedance | - |
| Lead Spacing | - |
| Size / Dimension | 0.492" Dia (12.50mm) |
| Height - Seated (Max) | 0.531" (13.50mm) |
| Surface Mount Land Size | 0.508" L x 0.508" W (12.90mm x 12.90mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| MAL214099112E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 330UF 20% 50V SMD | 100% | View |
| UUJ1J331MNQ6ZD | Nichicon | CAP ALUM 330UF 20% 63V SMD | 85% | View |
| UUJ1J331MNJ1MS | Nichicon | CAP ALUM 330UF 20% 63V SMD | 85% | View |
| EEV337M010A9MAA | KEMET | CAP ALUM 330UF 20% 10V SMD | 56% | View |
| UCQ1A331MCL1GS | Nichicon | CAP ALUM 330UF 20% 10V SMD | 56% | View |
| EEE-FN0J331XP | Panasonic Electronic Components | CAP ALUM 330UF 20% 6.3V SMD | 56% | View |
Submit your RFQ for 50TZV330M12.5X13.5 and get a quote within 24 hours.
