CAP ALUM 100UF 20% 50V SMD

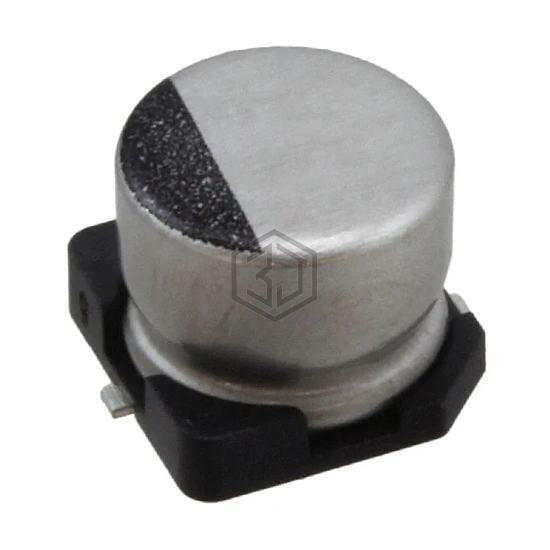

50SKV100M10X10.5 is a Aluminum Electrolytic Capacitors manufactured by Rubycon. CAP ALUM 100UF 20% 50V SMD. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 105°C, voltage - rated 50 V, package / case Radial, Can - SMD.
In Stock: 1,497
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 100 µF |
| Tolerance | ±20% |
| Voltage - Rated | 50 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 1000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 315 mA @ 120 Hz |
| Ripple Current @ High Frequency | 378 mA @ 10 kHz |
| Impedance | - |
| Lead Spacing | - |
| Size / Dimension | 0.394" Dia (10.00mm) |
| Height - Seated (Max) | 0.413" (10.50mm) |
| Surface Mount Land Size | 0.406" L x 0.406" W (10.30mm x 10.30mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| UUX1H101MNL1GS | Nichicon | CAP ALUM 100UF 20% 50V SMD | 98% | View |
| UUX1J101MNL1GS | Nichicon | CAP ALUM 100UF 20% 63V SMD | 90% | View |
| EEE-FN1J101V | Panasonic Electronic Components | CAP ALUM 100UF 20% 63V SMD | 87% | View |
| 50JKV100M8X10.5 | Rubycon | CAP ALUM 100UF 20% 50V SMD | 78% | View |
| EEE-FK1V101GL | Panasonic Electronic Components | CAP ALUM 100UF 20% 35V SMD | 70% | View |
| MAL216099702E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 100UF 20% 80V SMD | 65% | View |
Submit your RFQ for 50SKV100M10X10.5 and get a quote within 24 hours.
