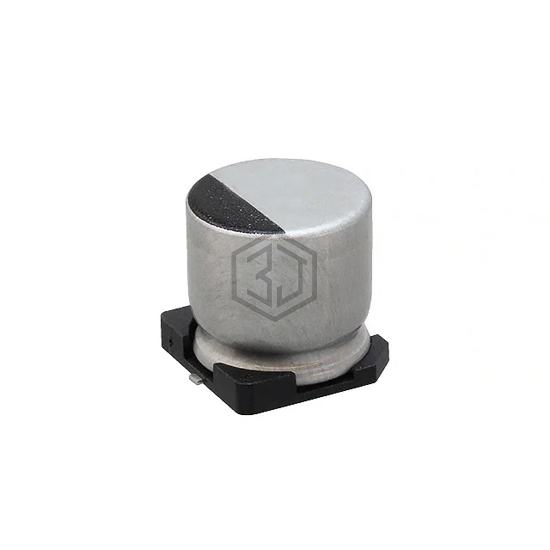

CAP ALUM 47UF 20% 50V SMD
50SGV47M10X10.5 is a Aluminum Electrolytic Capacitors manufactured by Rubycon. CAP ALUM 47UF 20% 50V SMD. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 105°C, voltage - rated 50 V, package / case Radial, Can - SMD.
In Stock: 6,402
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 47 µF |
| Tolerance | ±20% |
| Voltage - Rated | 50 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 2000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | AEC-Q200 |
| Applications | Automotive |
| Ripple Current @ Low Frequency | 180 mA @ 120 Hz |
| Ripple Current @ High Frequency | 270 mA @ 10 kHz |
| Impedance | - |
| Lead Spacing | - |
| Size / Dimension | 0.394" Dia (10.00mm) |
| Height - Seated (Max) | 0.413" (10.50mm) |
| Surface Mount Land Size | 0.406" L x 0.406" W (10.30mm x 10.30mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 865080645012 | Würth Elektronik | CAP ALUM 47UF 20% 50V SMD | 92% | View |
| AFK476M50E16T-F | Cornell Dubilier Electronics (CDE) | CAP ALUM 47UF 20% 50V SMD | 87% | View |
| MAL215097811E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 47UF 20% 63V SMD | 87% | View |
| MAL214699704E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 47UF 20% 80V SMD | 83% | View |
| EEE-FPC470UAR | Panasonic Electronic Components | CAP ALUM 47UF 20% 16V SMD | 73% | View |
| EXV476M6R3S9DAA | KEMET | CAP ALUM 47UF 20% 6.3V SMD | 55% | View |
